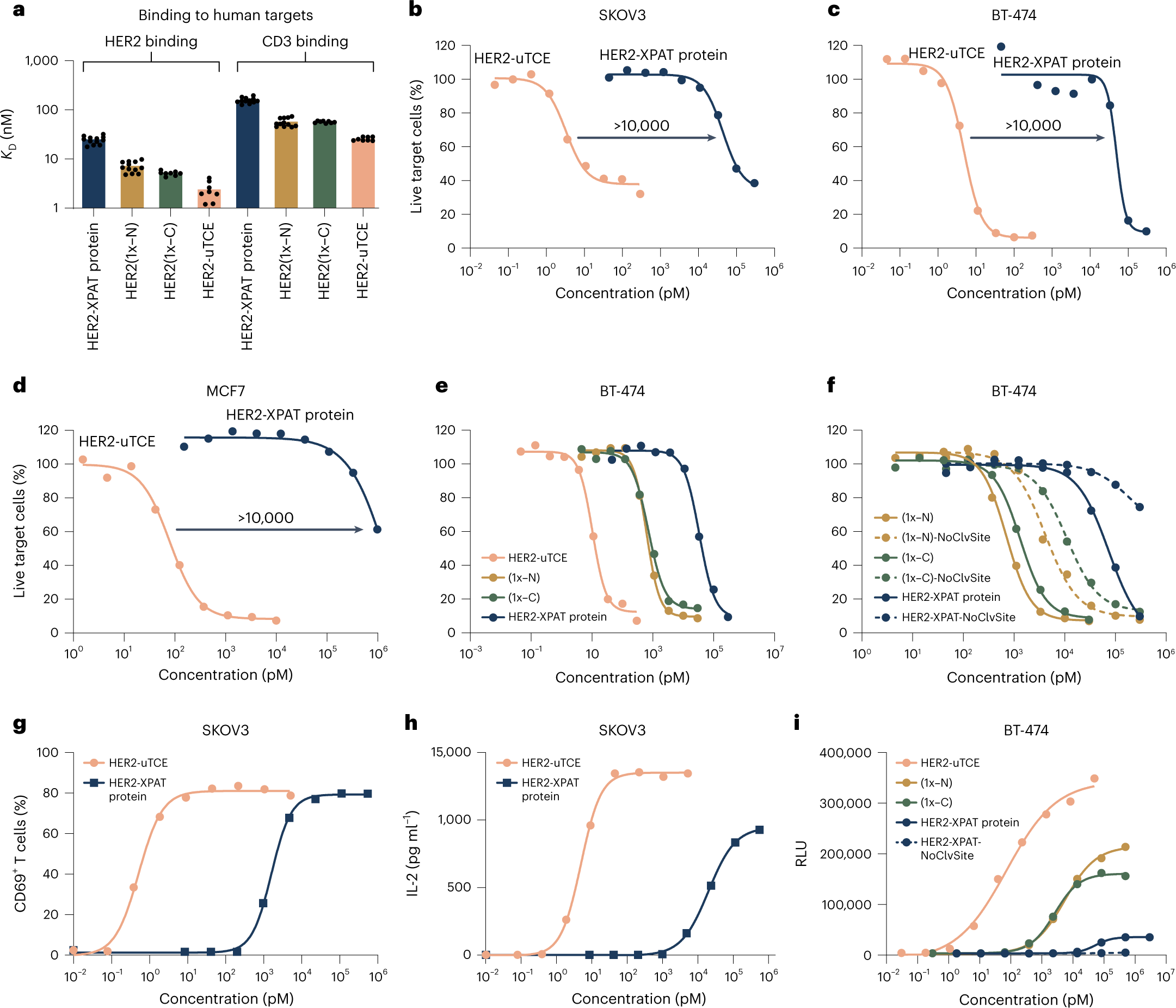

Fig. 2: Binding and in vitro activity of HER2-XPAT protein, its partially unmasked metabolites and unmasked HER2-TCE.
