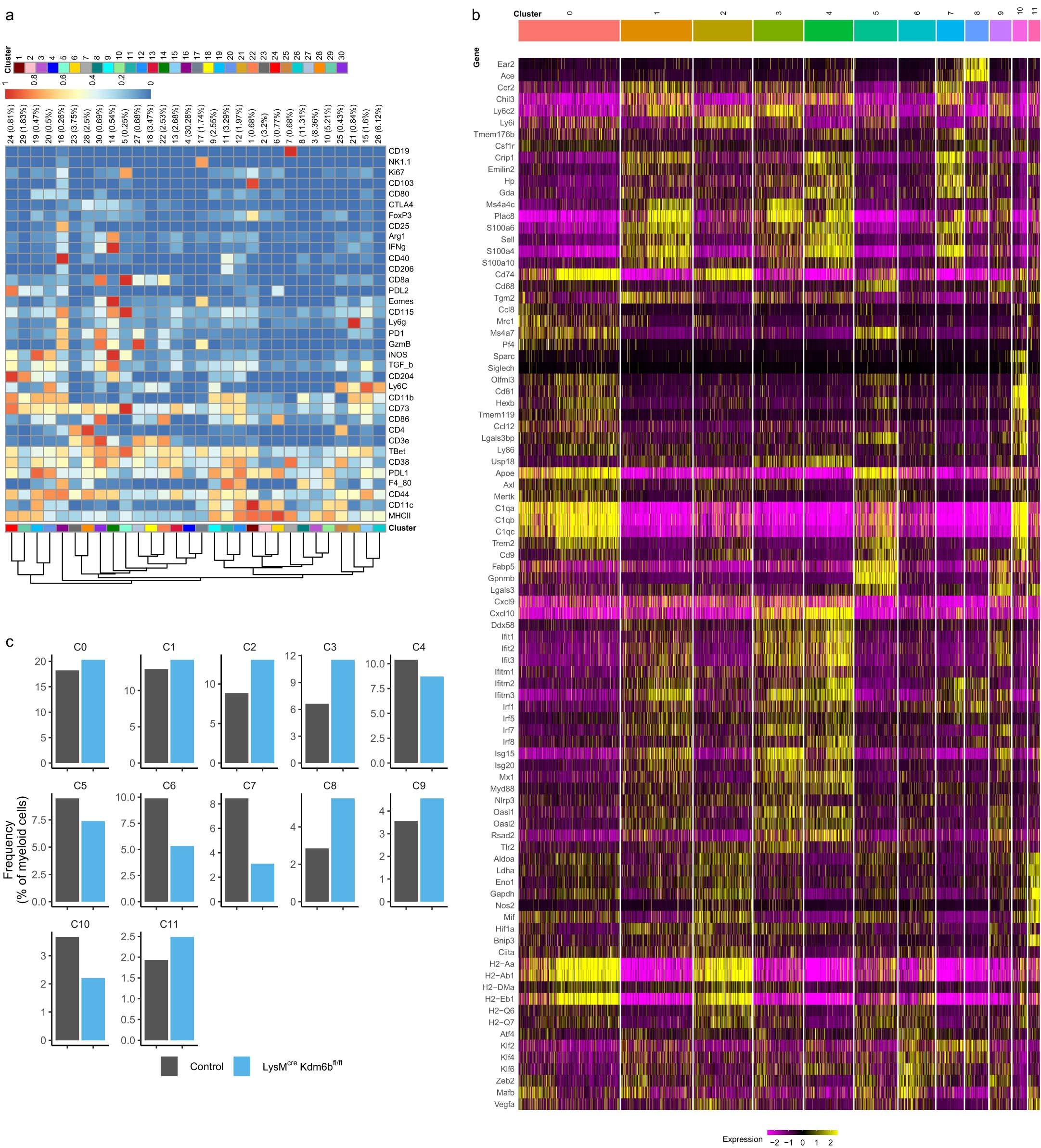

Extended Data Fig. 6: Myeloid specific deletion of Kdm6b skews TME to a pro-inflammatory phenotype.
From: Myeloid-specific KDM6B inhibition sensitizes glioblastoma to PD1 blockade
a, Heatmap showing the expression of protein markers of interest in the indicated immune cell clusters from Fig. 3g determined by mass cytometry. b, Heatmap showing the expression of genes of interest in the different myeloid cell clusters (shown in Fig. 4A-right panel). c, Bar plots representing the frequencies of intratumoral myeloid clusters from control and LysMcreKDM6Bfl/fl mice. Data representative of two independent experiments.
