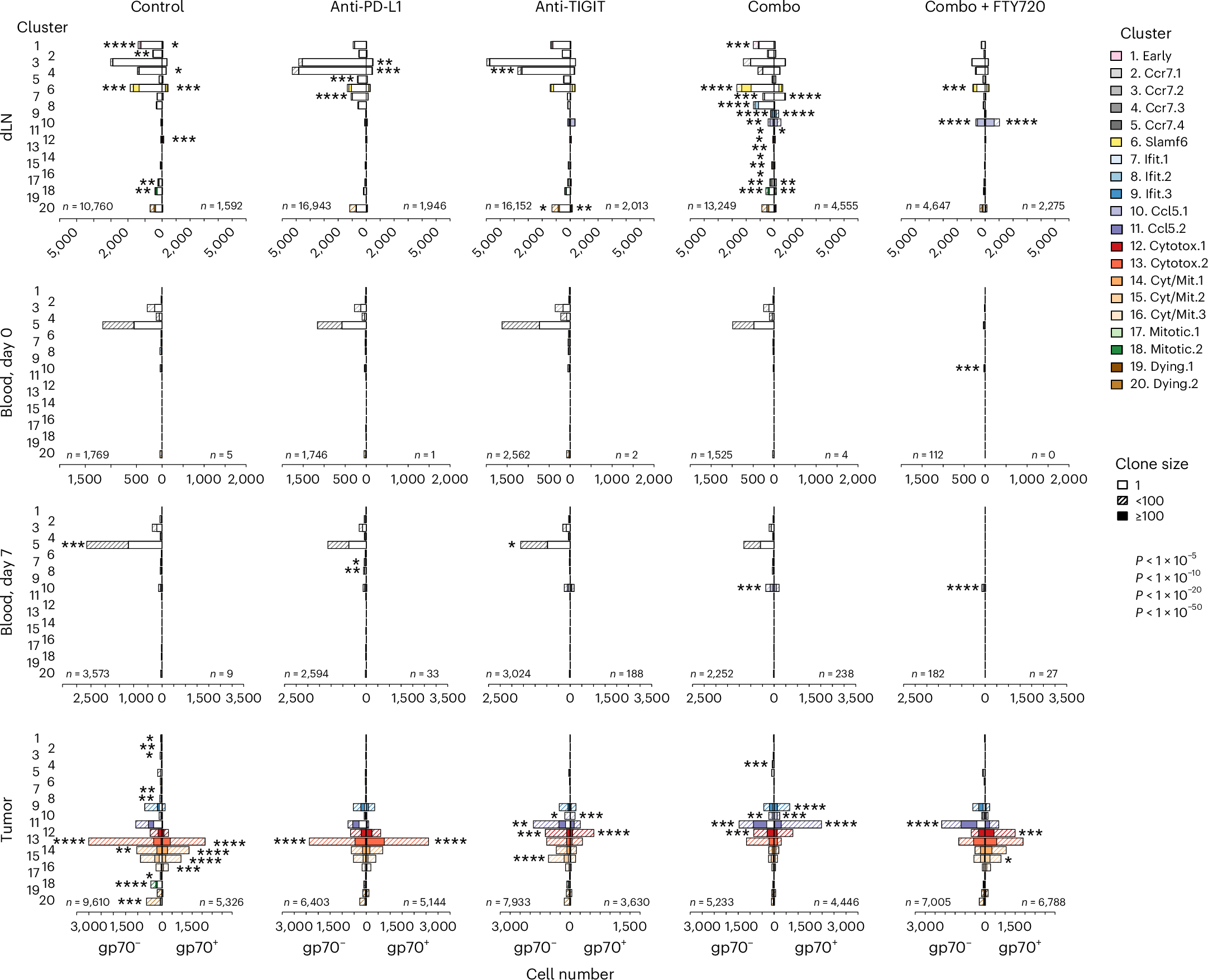

Fig. 4: Treatment effects on CD8+ T cell cluster and clonal composition in CT26 tumor-bearing mice, and stacked bar graphs of CD8+ T cell cluster composition in each tissue under each treatment condition.
Specificity for gp70 was determined by comparing ADT counts for gp70 tetramers, requiring that they should be higher than control tetramer count by a Poisson test with a one-sided P value < 1 × 10−6. In each stacked bar, open bar denotes singletons, solid bar denotes numbers for clones with less than 100 cells and hatched bar denotes numbers for clones with 100 or more cells. P values were determined by two-sided post hoc Fisher’s exact test for the indicated category relative to the rest of the contingency table and denoted by asterisks: *P < 1 × 10−5; **P < 1 × 10−10; ***P < 1 × 10−20; ****P < 1 × 10−50. n denotes the total number of gp70− (left) or gp70+ (right) cells.
