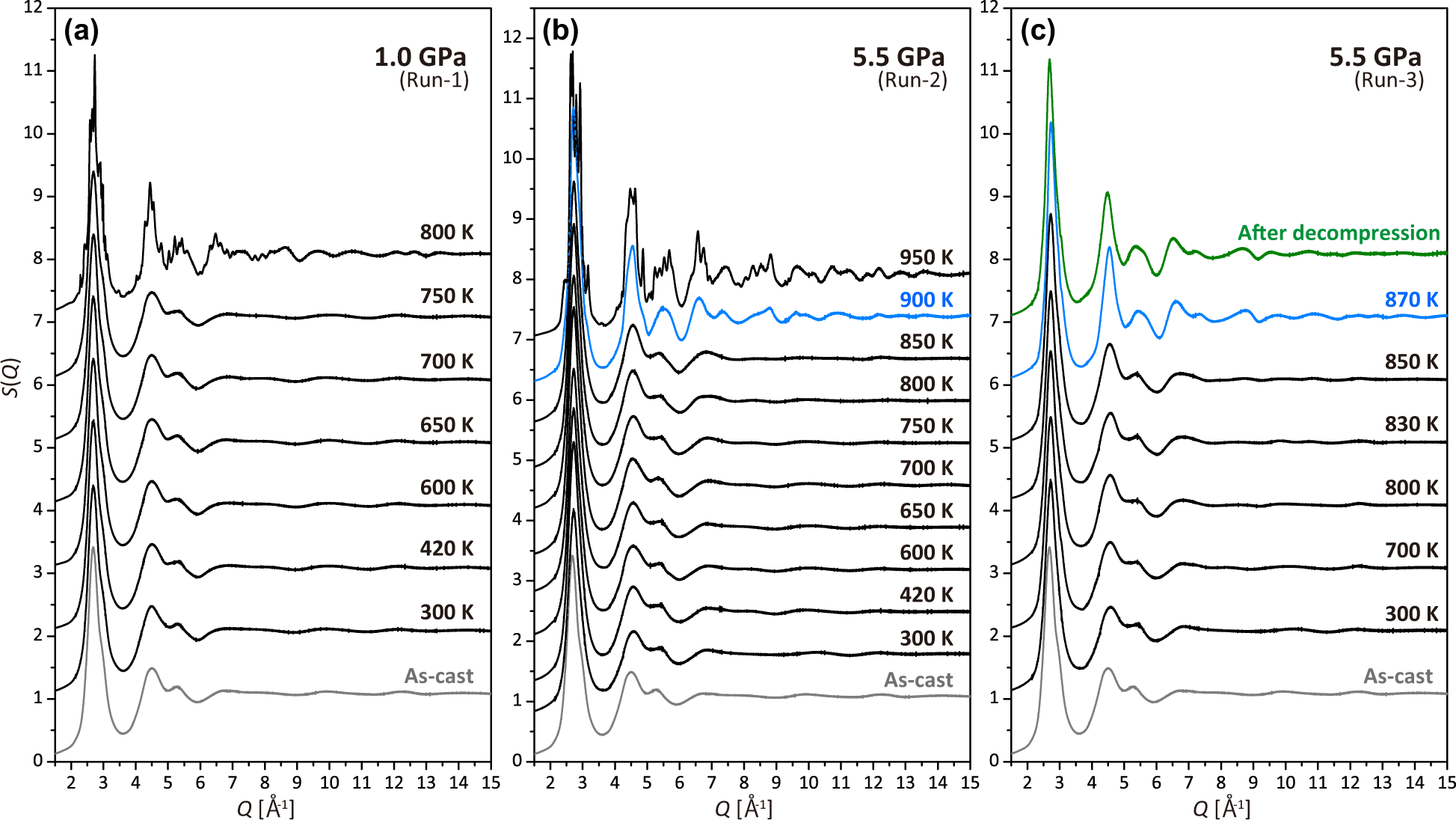

Fig. 2: Structure factors S(Q) of Zr50Cu40Al10 BMG at high pressures.

From: High-pressure annealing driven nanocrystal formation in Zr50Cu40Al10 metallic glass and strength increase

Fig. 2

a S(Q) at 1.0 GPa (Run-1). b S(Q) at 5.5 GPa up to the temperature where sharp peaks from crystal were observed (Run-2). c S(Q) at 5.5 GPa below the temperature where sharp crystal peaks were observed in Run-2 and after decompression (Run-3). Temperature values indicate synthesized temperature conditions. The data are shifted by 1.0 in a and c, and 0.7 in b for clarity.
