Fig. 2: High energy X-ray diffraction data on liquid FeOX.

From: Redox-structure dependence of molten iron oxides

Fig. 2

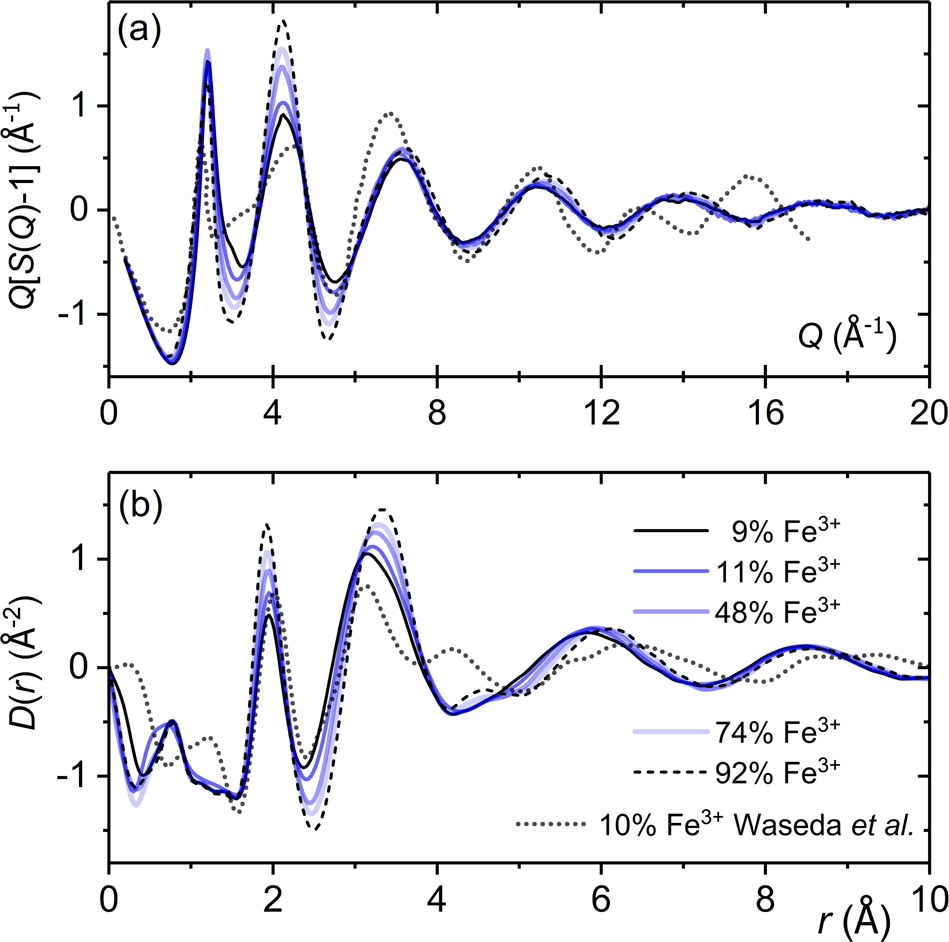

a Q-multiplied X-ray structure factors Q[S(Q)-1] and corresponding b differential distribution functions D(r) for liquid FeOx measured at ∼1673 K in different gases. Comparison is made to the digitized x-ray S(Q) from Waseda et al.10 and our Fourier transform of this data (dotted lines).
