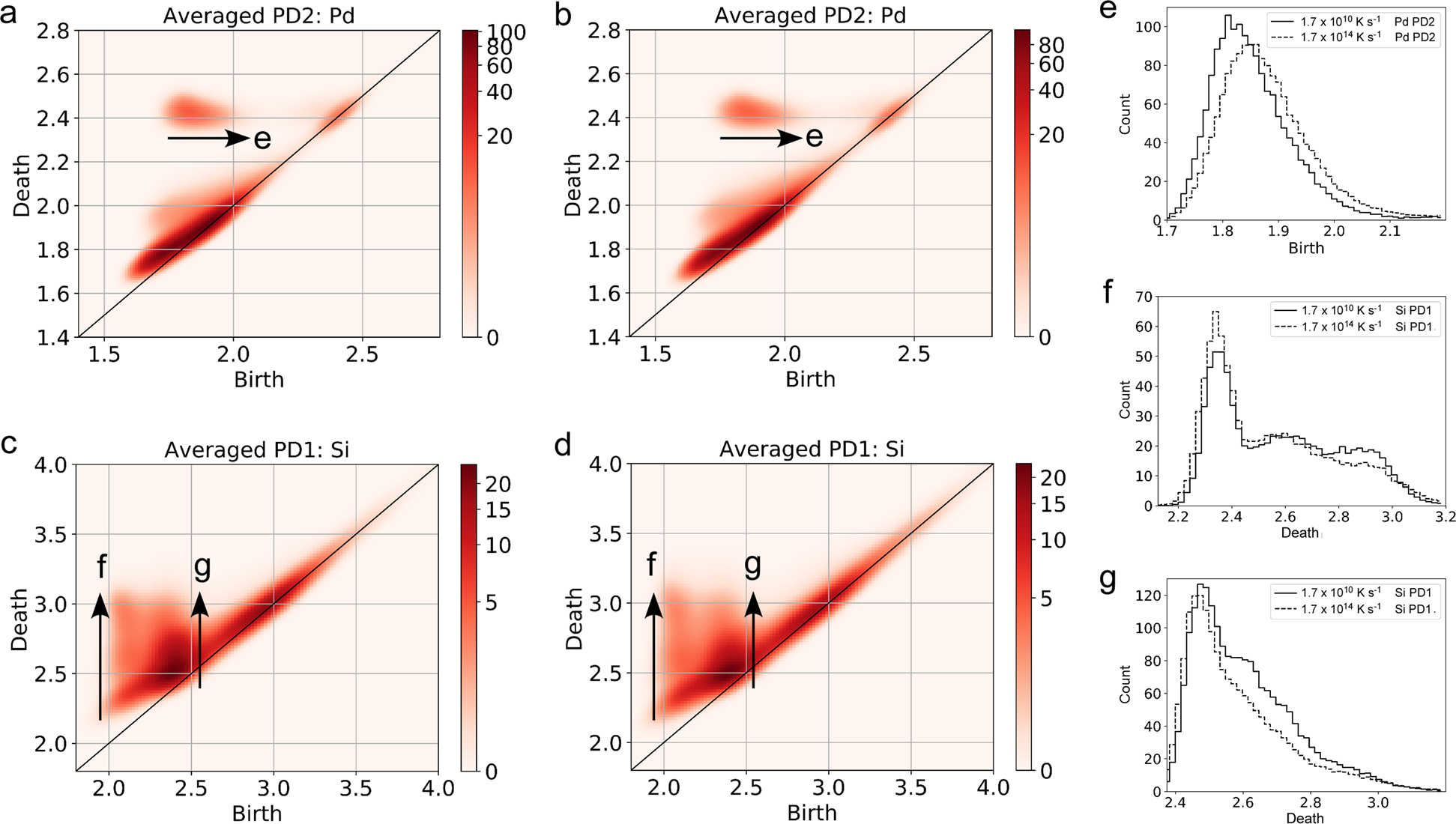

Fig. 2: First and second persistence diagrams (PD1, PD2) averaged over 30 models with the fastest and slowest cooling rates.
From: Structural changes during glass formation extracted by computational homology with machine learning
PD2 for Pd configurations corresponding to a the slowest-cooled (1.7 × 1010 K s−1) model and b the fastest-cooled (1.7 × 1014 K s−1) model and PD1 for Si configurations corresponding to c the slowest-cooled model and d the fastest-cooled model. The intensity profiles along the arrows labelled e, f, and g are shown in (e), (f), and (g), respectively.
