Fig. 6: FDTD simulations for hyperbolic polaritons interacting with engineered defects.

From: Interaction of edge exciton polaritons with engineered defects in the hyperbolic material Bi2Se3

Fig. 6

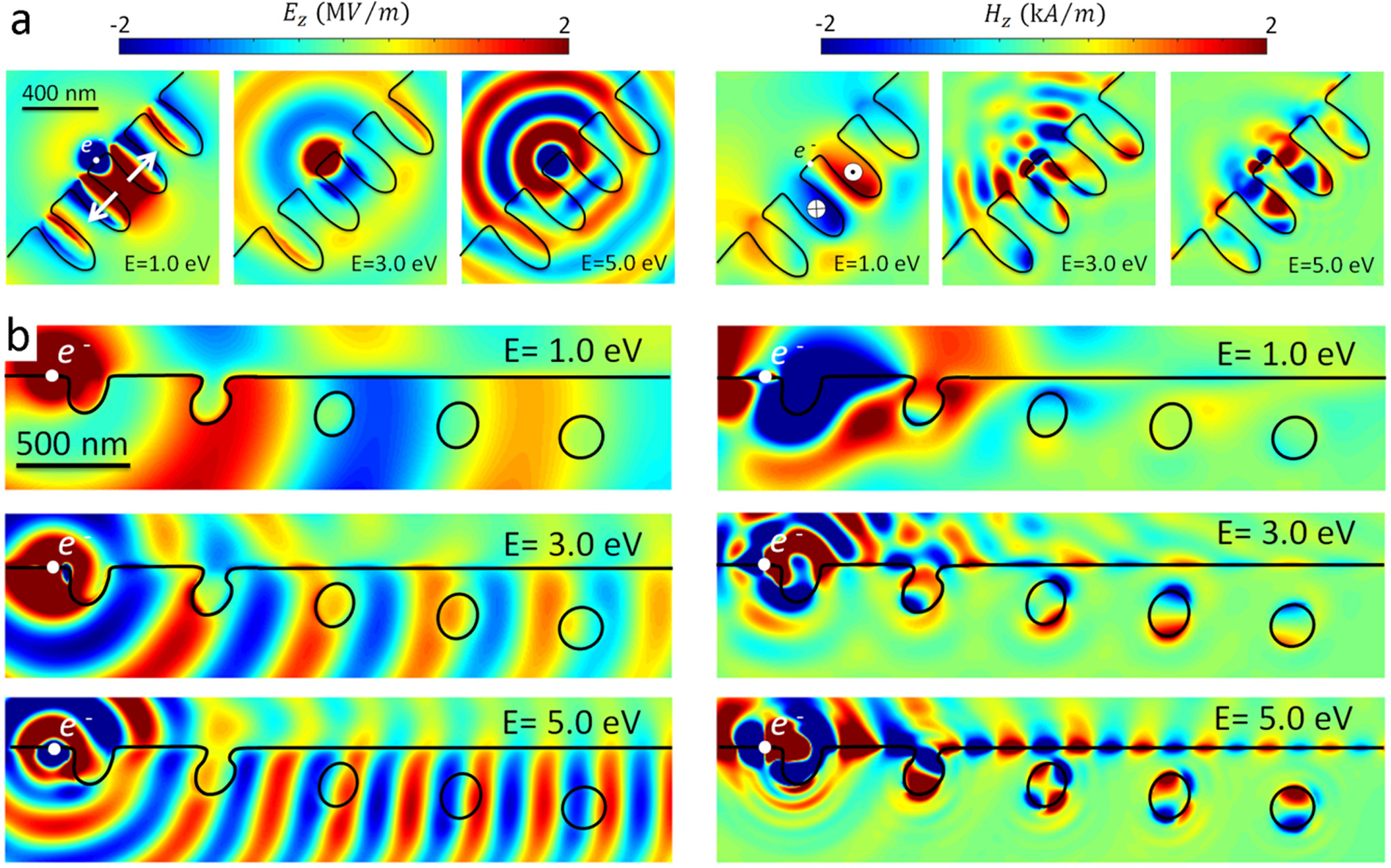

a, b FDTD simulations for the investigated structures being excited by fast electrons at the positions marked in white color. The color-coded images show the z-component of the electric and magnetic field strength for different excitation energies. The images depict temporal snapshots. Supplementary Movies 1–4 are available online.
