Fig. 4: Experimental performance evaluation of temperature maps to the arched thermal metasurface.

From: Flexible and high precision thermal metasurface

Fig. 4

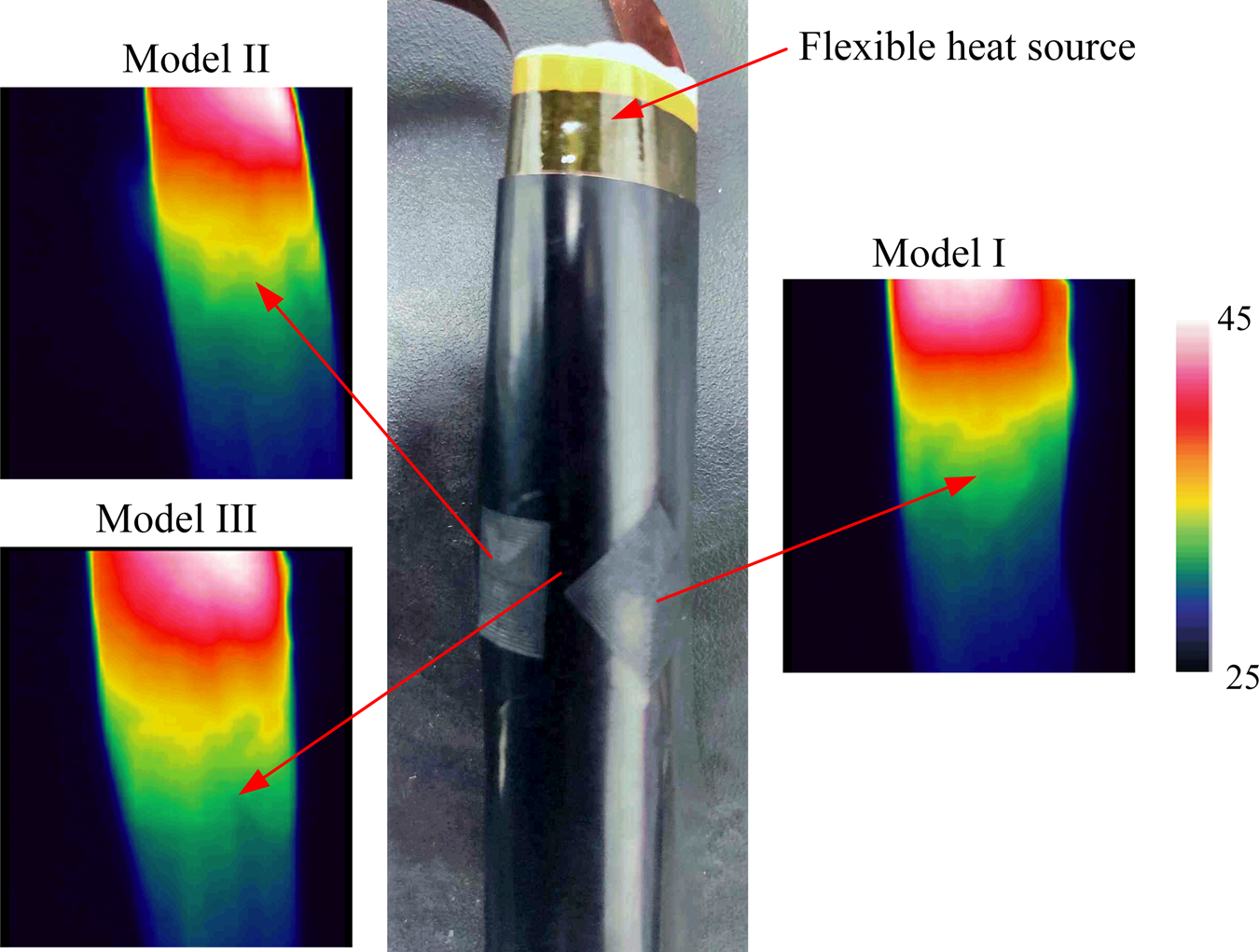

A flexible adjustable graphene heat source72,73 is attached to the Model III and bend the Model III into an arch shape. Model I and II cannot interfere with each other during taking thermal distribution maps due to the arched thermal metasurface. The thermal distribution maps of the three models can be obtained by shooting from different angles in the same thermal metasurface.
