Fig. 9: DC and pulsed operation characteristics of C545T:PCAN (1:99 wt%) based OLEDs.

From: Controlling triplet–triplet upconversion and singlet-triplet annihilation in organic light-emitting diodes for injection lasing

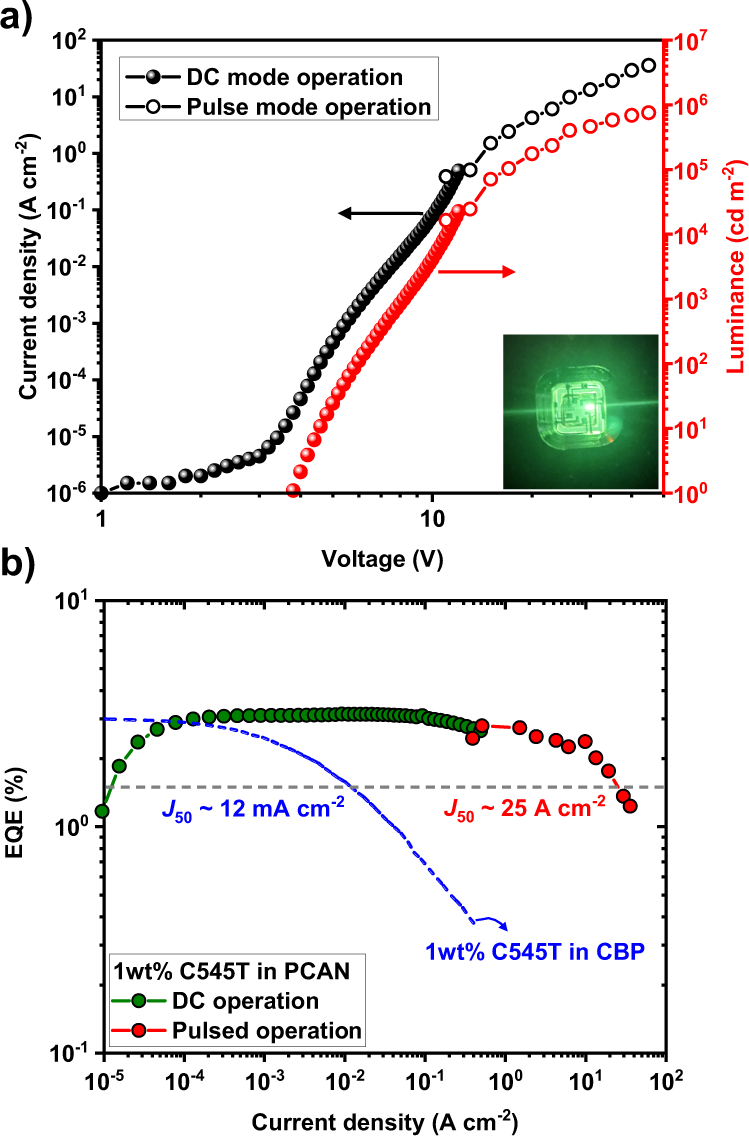

Fig. 9: DC and pulsed operation characteristics of C545T:PCAN (1:99 wt%) based OLEDs.The alternative text for this image may have been generated using AI.

a Combined J–V–L characteristics of C545T: PCAN-based OLEDs under DC pulsed operation. [Inset: Image of the EL from C545T: PCAN (1:99 wt%) OLEDs operated at 30 V]. b EQE versus current density comparison for OLEDs with 1 wt% C545T doped in CBP and PCAN hosts.
