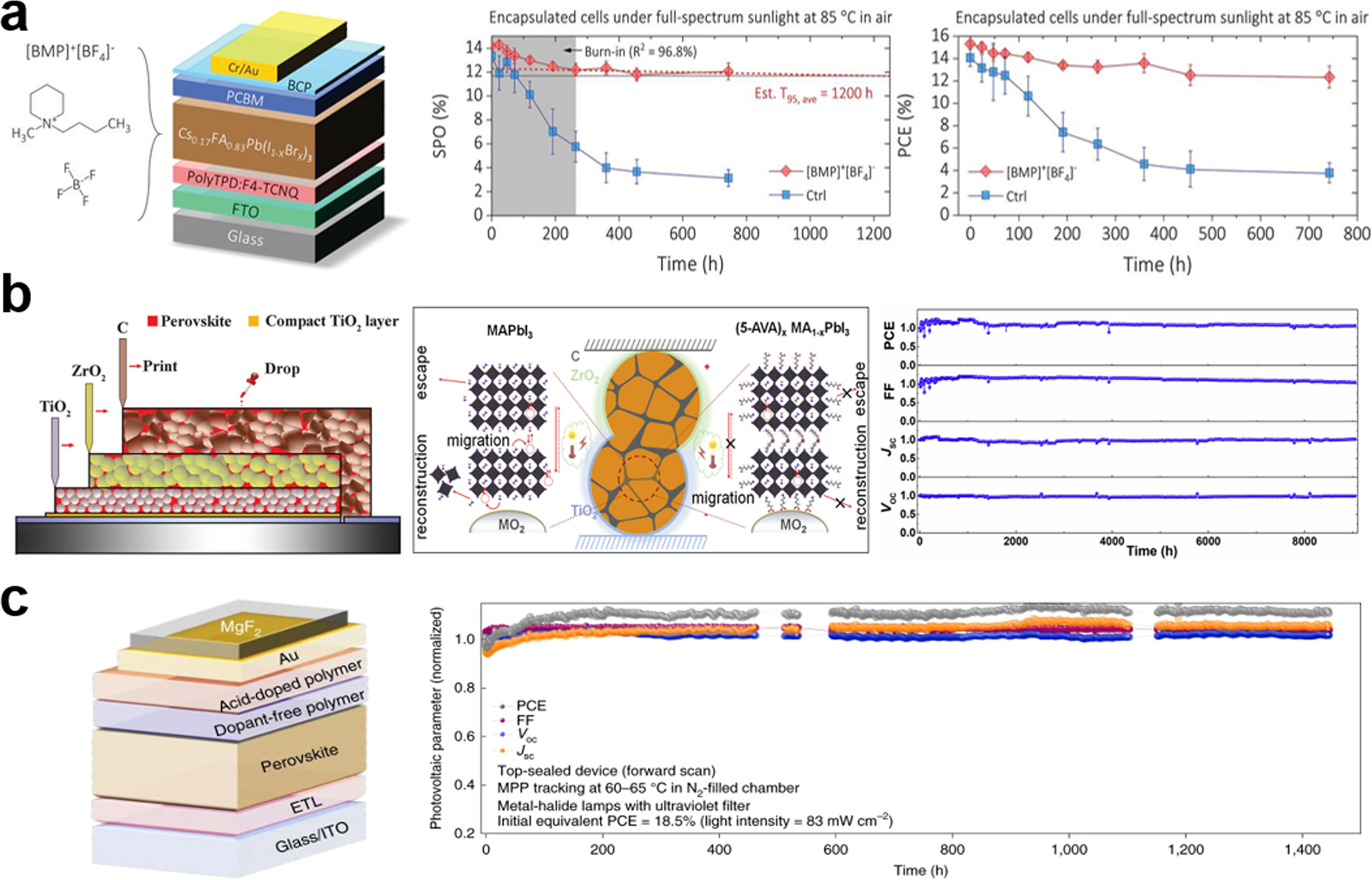

Fig. 8: Typical stability results for dissolving multiple degradation pathways.
From: Degradation pathways in perovskite solar cells and how to meet international standards
a A p-i-n inverted planar PSC utilizing the [BMP]+[BF4]− additive to suppress deep trap states, the thermally stable HTL polyTPD, and Cr-modified Au electrode to achieve excellent stability under full sunlight at 85 °C. Adapted with the permission from ref. 89 Copyright © 2020, The American Association for the Advancement of Science. b The p-MPSCs with the triple-mesoscopic structure, no HTL and carbon electrode as an inherently stable structural design. Stability of over 9000-h operational tracking was achieved due to localized effect of mesopores and interface strengthening effect of 5-AVAI. Adapted with the permission from ref. 110 Copyright © 2014, The American Association for the Advancement of Science. Adapted with the permission from ref. 63 Copyright © 2020 Elsevier Inc. c A modified n-i-p PSC structure with multiple layers of ETL, inherently stable perovskite composition, stable bilayered HTL, and MgF2 capping layer atop Au enables long-term operational stability at 65 °C under metal-halide lamps in N2. Adapted with the permission from ref. 111 Copyright © 2021, The Author(s), under exclusive licence to Springer Nature Limited.
