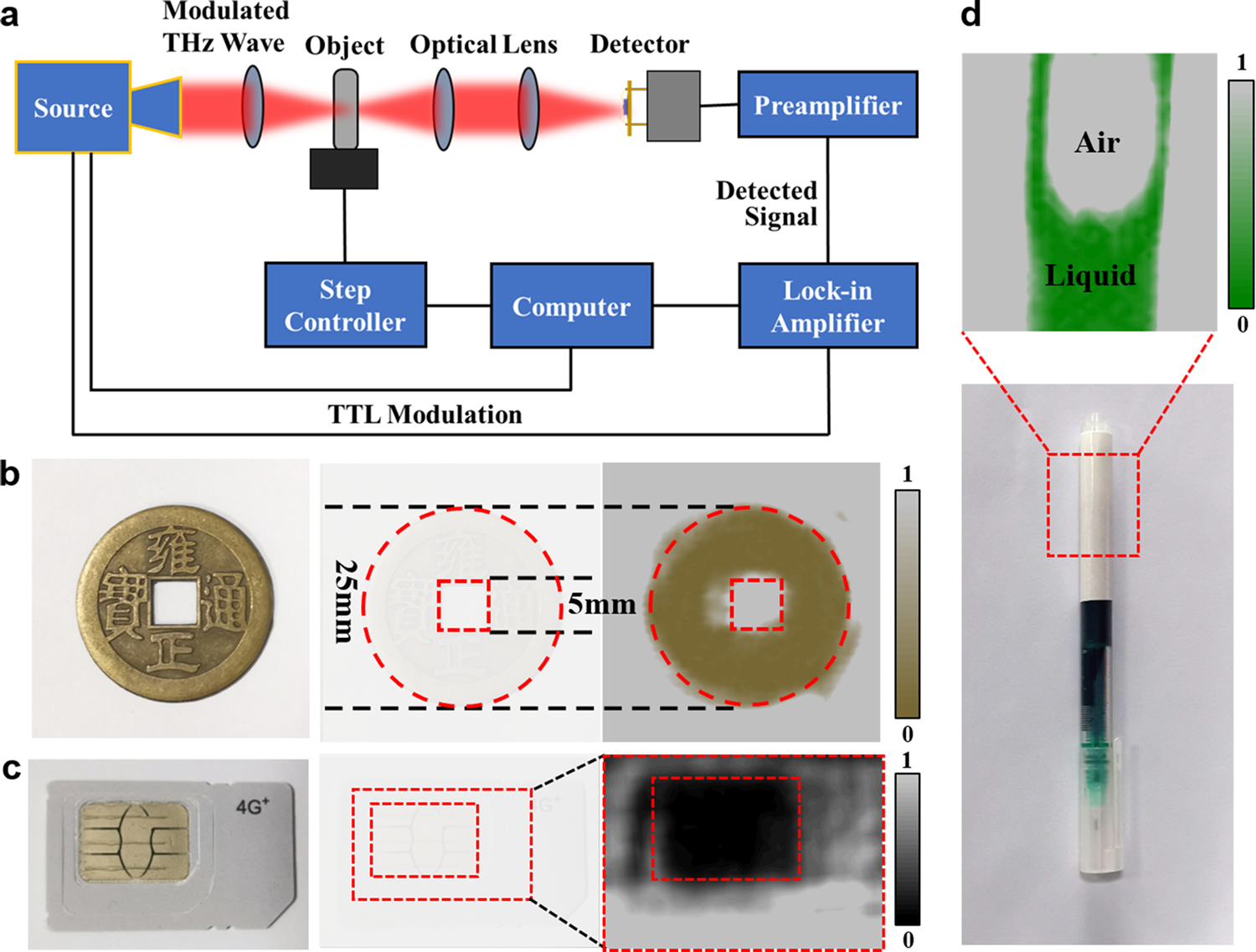

Fig. 5: THz transmission imaging experiments.
From: Bandgap-independent photoconductive detection in two-dimensional Sb2Te3
a Schematic of the setup used for the THz detection and imaging. b Photo picture of a copper coin and its THz image. c Photo picture of a sim card and its THz image. d Photo picture of a pen and THz image of ink capacity of the pen.
