Fig. 2: Wide-angle XRD analysis of the 1/2 mixture with various dr.

From: Nano-clustering mediates phase transitions in a diastereomerically-stabilized ferroelectric nematic system

Fig. 2: Wide-angle XRD analysis of the 1/2 mixture with various dr.

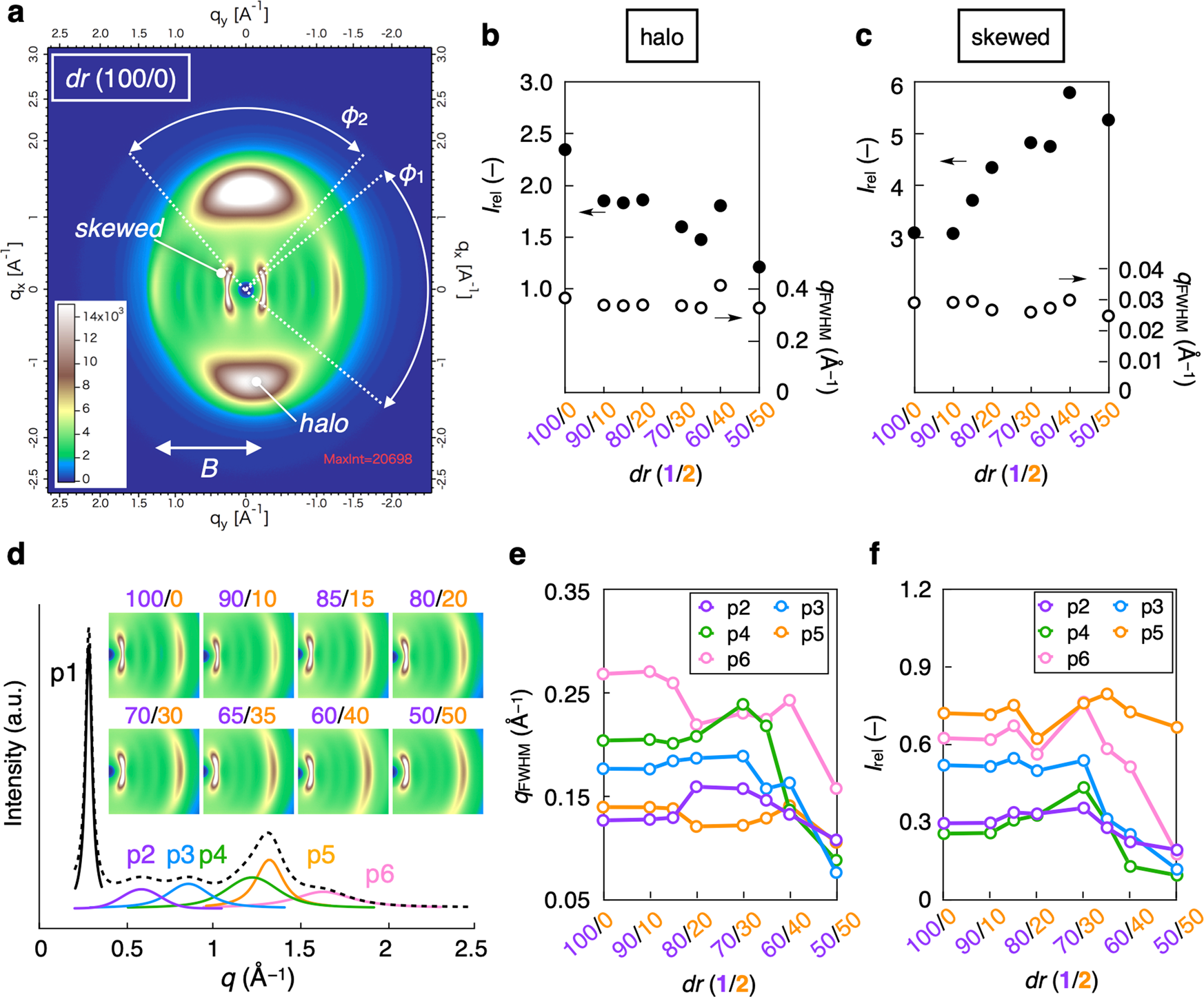

a 2D Wide-angle X-ray diffraction profile of the 1/2 mixture (dr = 100/0). The azimuth angle φ1 = 80°, φ2 = 60° represents the scanning range for generation of the 1D XRD profile. The value of qFWHM and relative intensity (Irel) as a function of dr for halo (b) and skewed peaks (c). Irel was calculated by dividingIby IIL for halo and skewed peaks. d 1D XRD profile of the 1/2 mixture (dr = 70/30) with separated peaks (p1–p6). Insets denote the analyzed area for all entries (dr = 100/0–50/50). The value of qFWHM (e) and relative intensity (Irel) (f) as a function of dr for multiple peaks (p2–p6). Irel was calculated by dividing Iobs. by the corresponding IIL.
