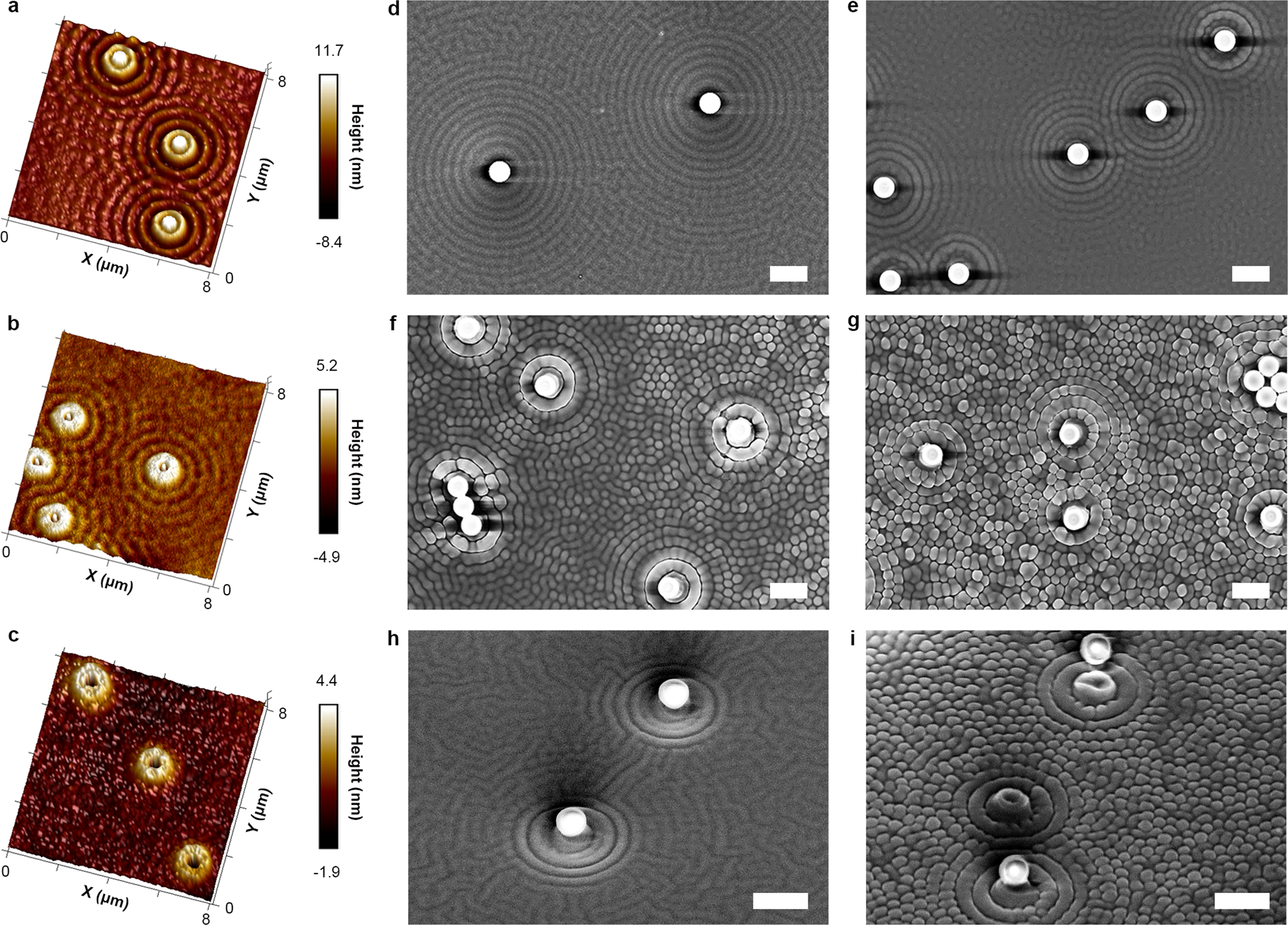

Fig. 6: The microscopic images of the IA-Chol films with the polystyrene spheres (D = 250 nm, 1000 nm) on the surfaces after irradiation with the circularly polarized light for different time periods.
From: Self-organized patterning on azo molecular glass film via optical near-field effect
a–c Typical three-dimensional AFM images of IA-Chol films with polystyrene spheres (D = 250 nm) on the surfaces exposed to the light for 2, 3 and 5 min, respectively. d–g Top-view SEM images of IA-Chol films with polystyrene spheres (D = 1000 nm) on the surfaces exposed to the light for 10, 20, 30, and 60 min, respectively. h, i Side-view SEM images of IA-Chol films with polystyrene spheres (D = 1000 nm) on the surfaces exposed to the light for 20 min and 30 min. The light intensity and wavelength were 300 mW cm−2 and 488 nm. The scale bars of all the SEM images correspond to 2 μm.
