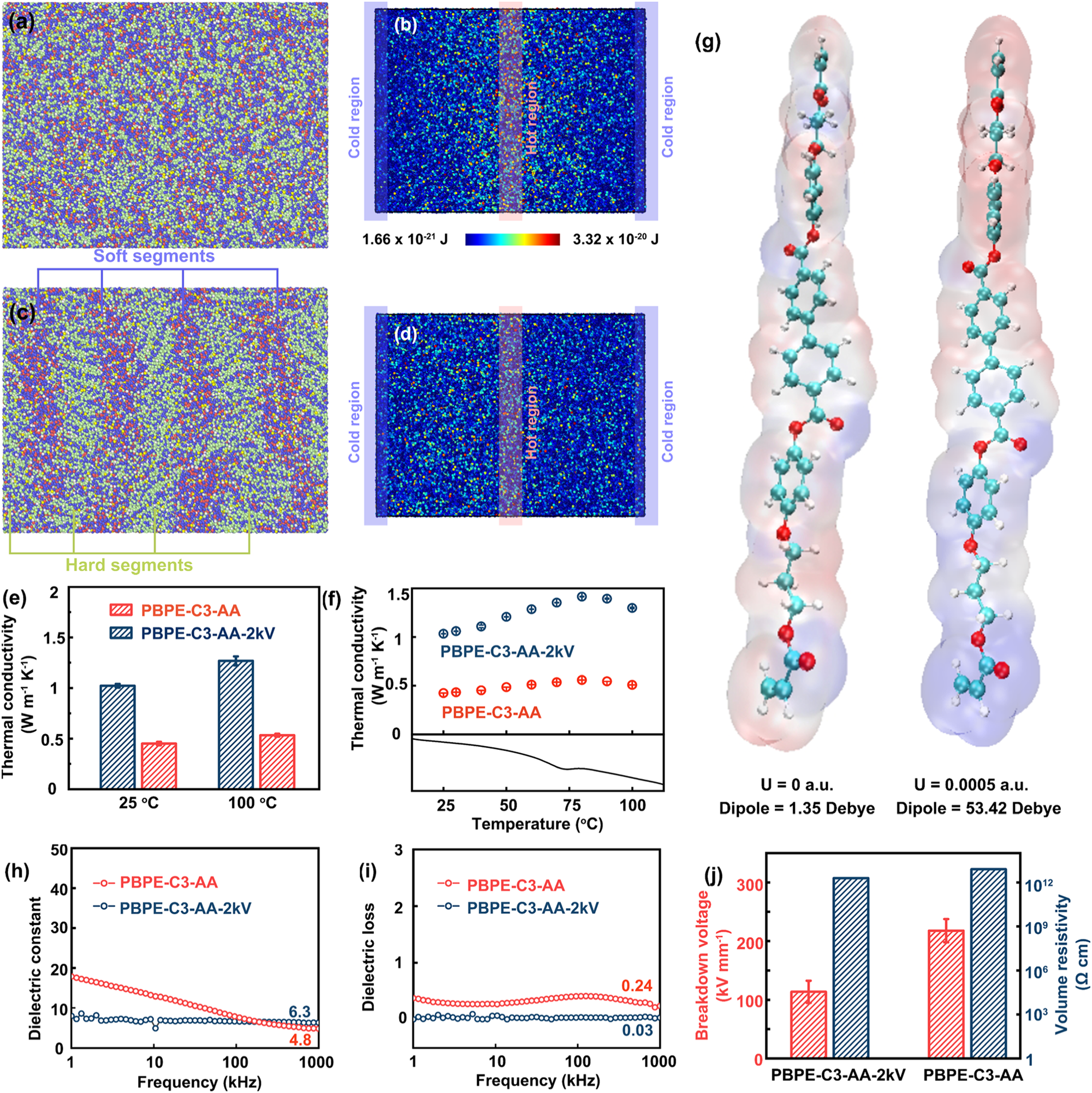

Fig. 4: The thermal and electrical properties of LCP.
From: Electric-field-aligned liquid crystal polymer for doubling anisotropic thermal conductivity
a The structure of PBPE-C3-AA. b The kinetic energy of atom in PBPE-C3-AA in NEMD process. c The structure of PBPE-C3-AA-2kV. d The kinetic energy of atom in PBPE-C3-AA-2kV in NEMD process. e The thermal conductivity of samples at different temperature (blue column represents PBPE-C3-AA-2kV and the red one represents PBPE-C3-AA). f The thermal conductivity of samples during heating process and the DSC curve of polymer in the same temperature range (blue curve represents PBPE-C3-AA-2kV and the red one represents PBPE-C3-AA). g The electron distribution analysis and the dipole moment of monomer. h Dielectric constant of samples (blue dots represent PBPE-C3-AA-2kV and the red one represent PBPE-C3-AA). i Dielectric loss of samples (blue dots represent PBPE-C3-AA-2kV and the red one represent PBPE-C3-AA). j Breakdown voltage and volume resistivity of samples (blue column represents volume resistivity and the red one represents breakdown voltage).
