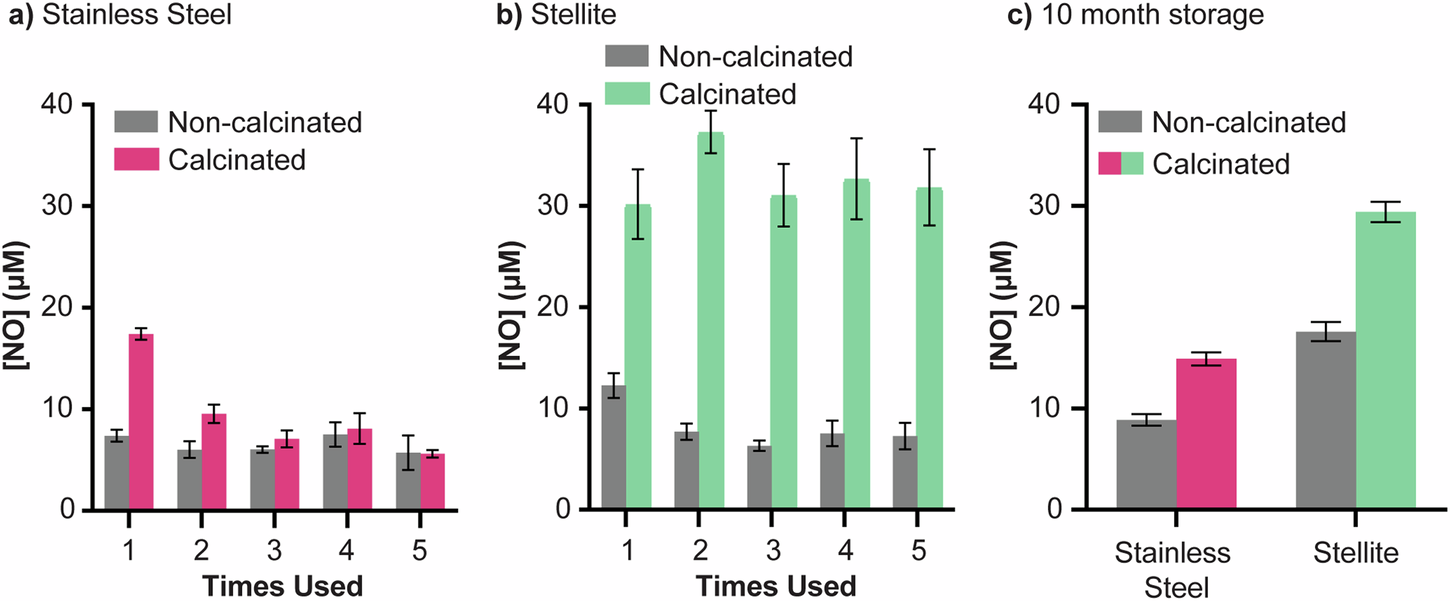

Fig. 10: Recyclability and long-term storage of non-calcinated and calcinated stainless steel and stelite wires.

From: Nitric oxide-generating metallic wires for enhanced metal implants

Fig. 10

Cumulative NO generation after incubating 5 non-calcinated or calcinated a stainless steel or b stellite wires in 200 μL of 50 μM GSNO in PBS for 24 hours for 5 cycles at 37 oC. c Cumulative NO generation after incubating 5 non-calcinated or calcinated 10-month stored stainless steel or stellite wires in 200 μL of 50 μM GSNO in PBS for 24 hours at 37 °C. n ≥ 3; error bars represent standard deviation.
