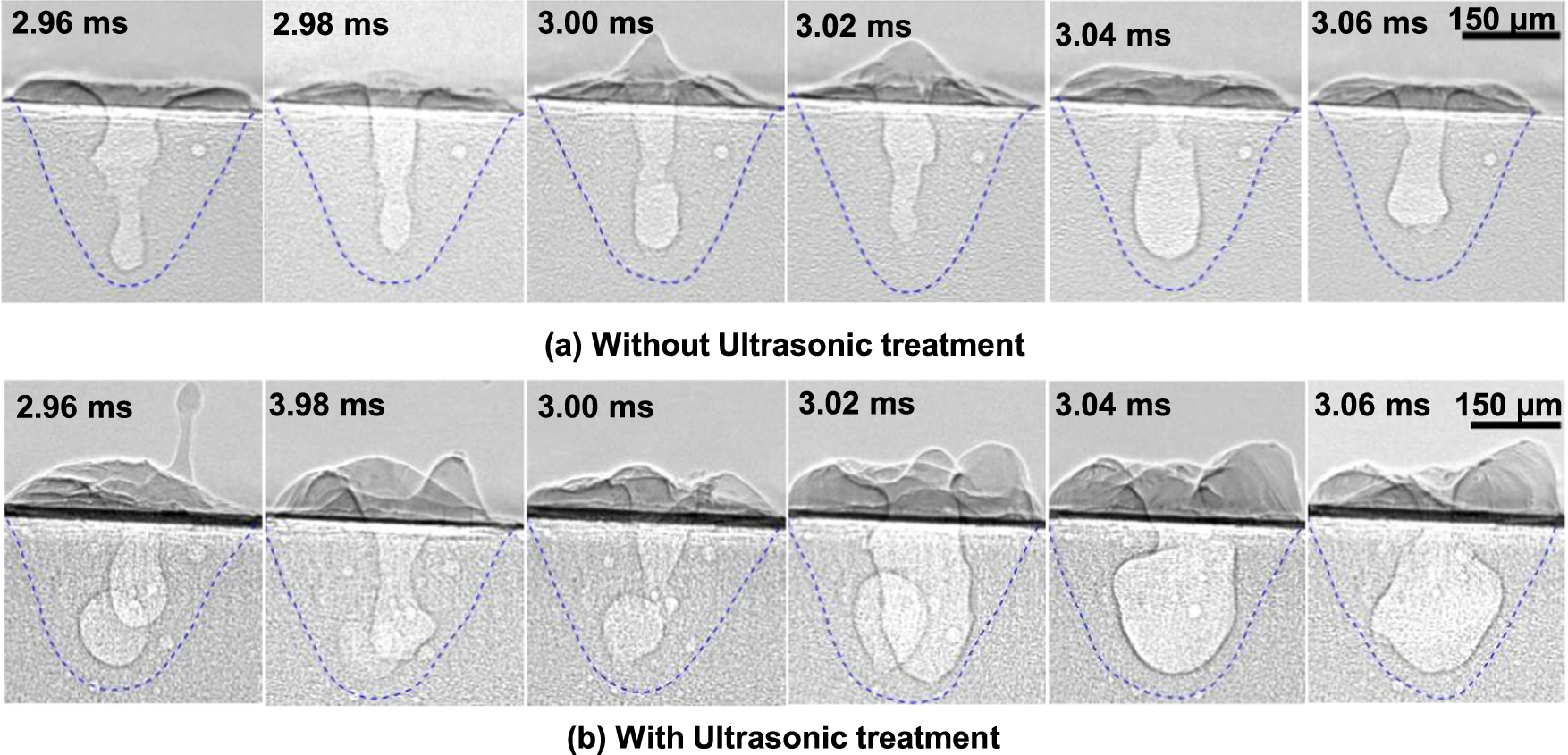

Fig. 3: X-ray image sequences showing laser-generated molten Al6061 pools.

Melt pools (a) without and (b) with sonication. The six X-ray frames were taken at 0.02 ms intervals, beginning at 2.96 ms after the laser was turned on. The video from which these frames were extracted is found in Supplementary Movie 2.
