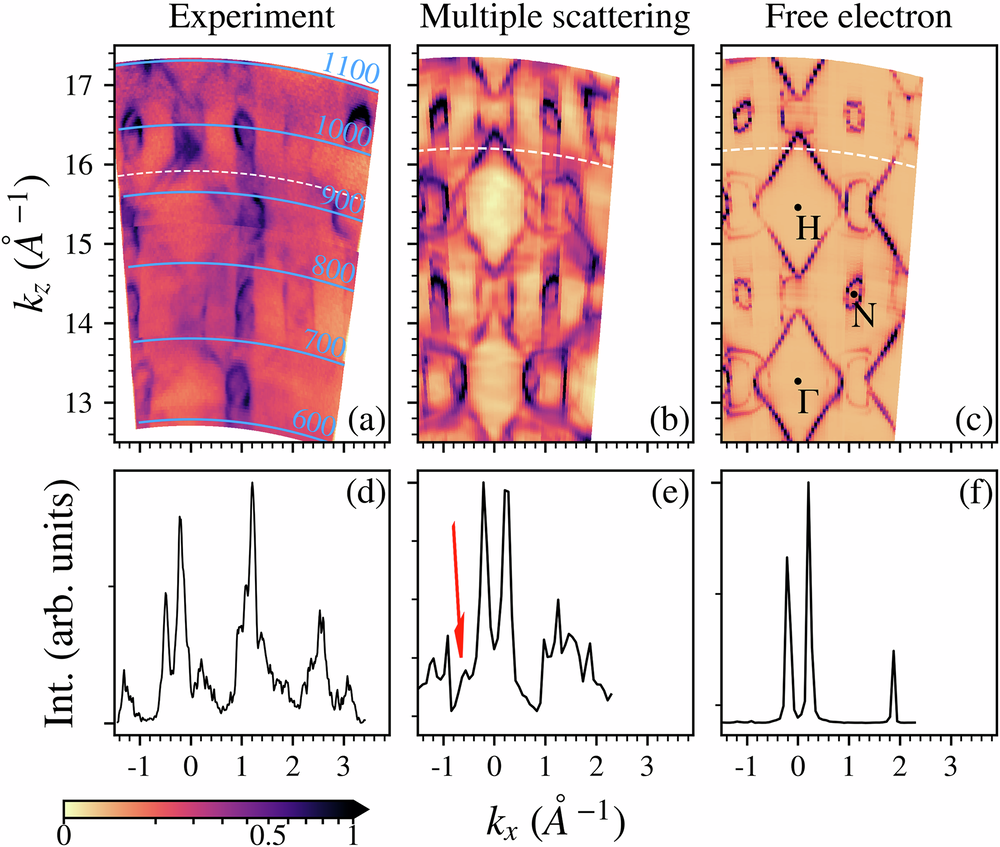

Fig. 5: Final state effects in the Fermi surface.
From: Evidence of spin and charge density waves in Chromium electronic bands
(a) Experimental Fermi surface along the Γ-H direction perpendicular to the crystal surface using a photon energy range of 590–1100 eV. LDA-DFT within the SPRKKR framework with multiple scattering final states, (b), and free-electron final states, panel (c). In (d–f) panels we show the intensities along the shown paths (white lines in (a–c)). All the experimental data are reported using a square root color scale.
