Fig. 2: Comparison of optoelectronic performance of two devices.

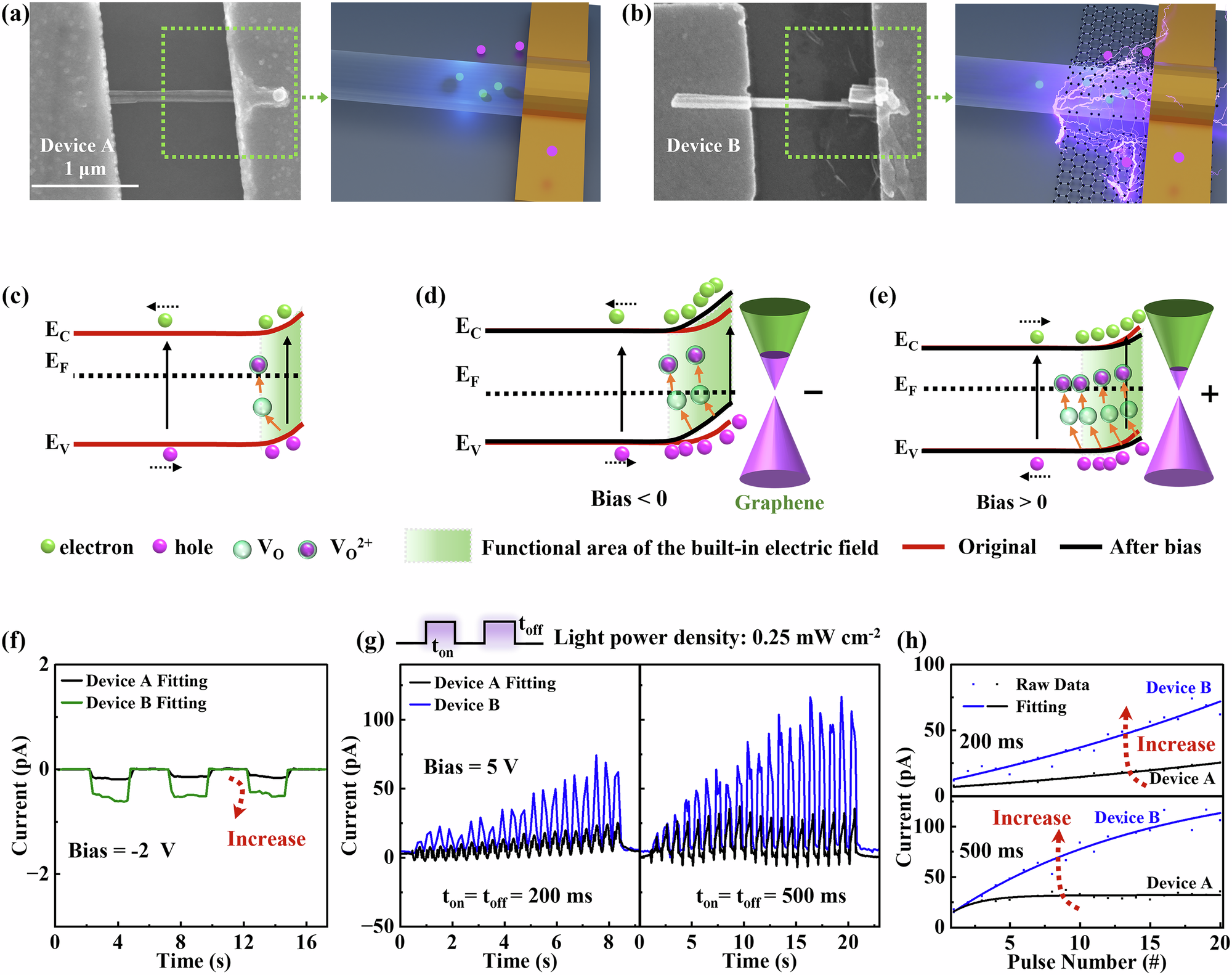

Top-view SEM images and schematic diagrams (a) device A and (b) device B. Energy band diagrams of (c) device A under illumination, (d) device B under negative bias and illumination, (e) device B under positive bias and illumination. f Comparison of photogenerated currents between devices A and B under negative bias, and the Raw Data is shown in Fig. S2a. g The EPSC of devices A and B triggered by 20 light pulses under positive bias, and the Raw Data is shown in Fig. S2b. h The extracted EPSC results of devices A and B under illumination.
