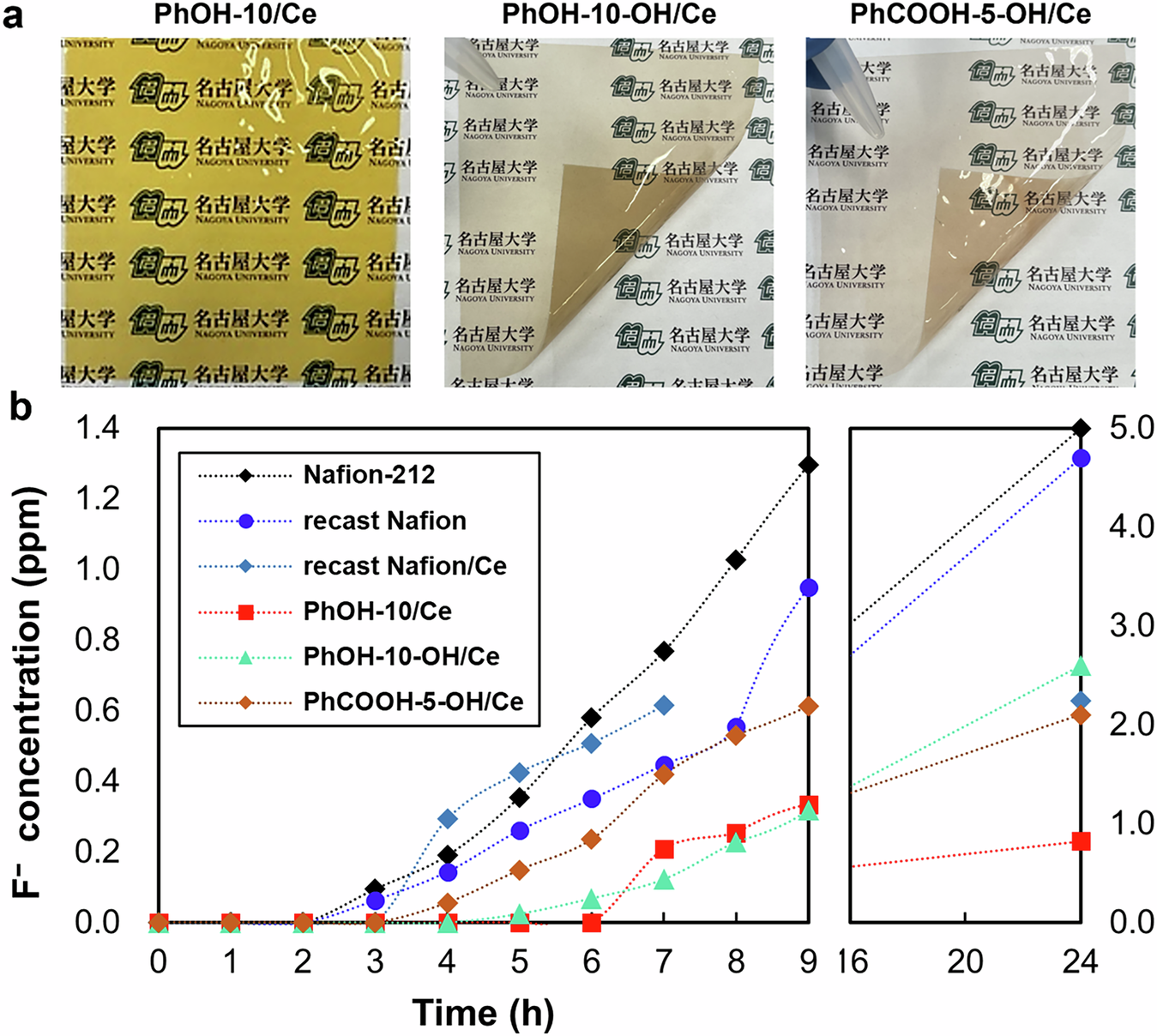

Fig. 2: Oxidative stability of Nafion and hybrid proton exchange membranes (PEMs).

a Digital photographs of fullerene derivative/Ce hybrid PEMs. b F⁻ ion concentration (ppm) in solution during the Fenton reaction [0–9 h (left) and 16–24 h (right)] at 80 °C.
