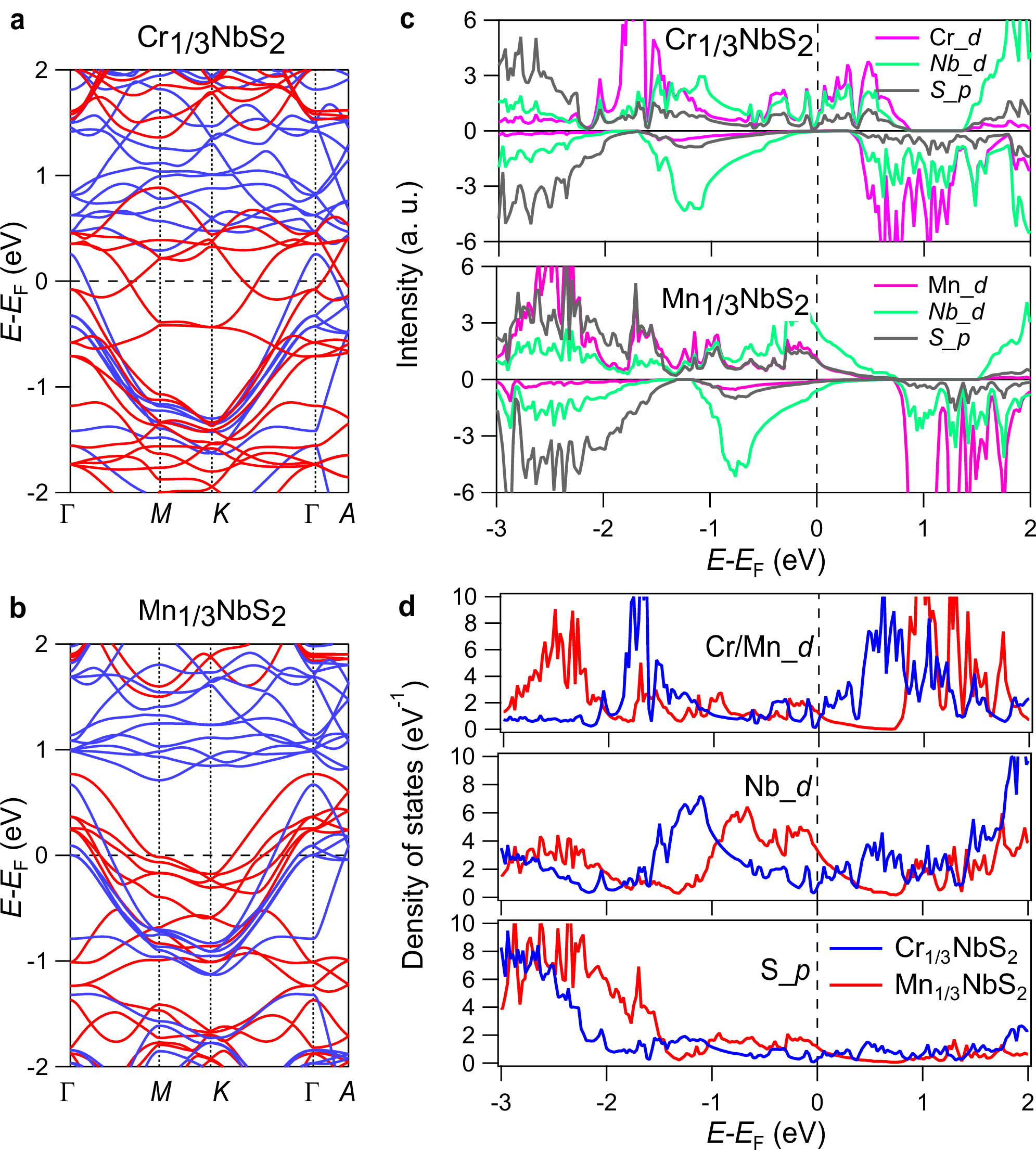

Fig. 4: Bands calculations on Cr- and Mn-intercalated NbS2.
From: Hund’s rule coupling and interlayer hybridization of intercalated transition metal dichalcogenides
a, b Calculated band structures of the two compounds in the ferromagnetic ground state without spin-orbit coupling. Red and blue lines represent opposite spin orientations. c Spin-resolved and orbital-projected DOS for both compounds. d Comparison of spin-integrated and orbital-projected DOS for Cr/Mn 3d, Nb 4d, and S 3p states in the two compounds.
