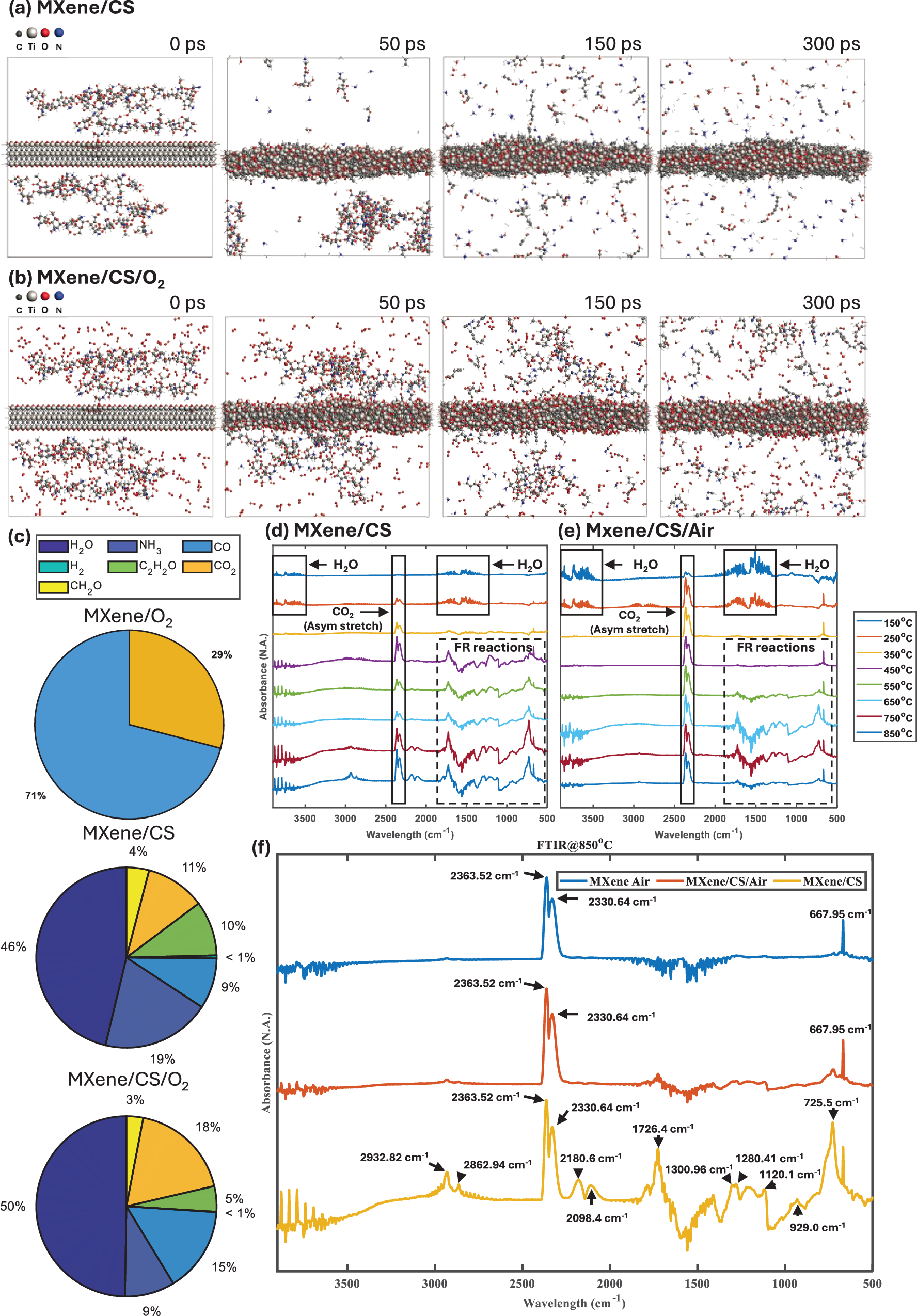

Fig. 3: Gas-phase interactions of MXene/CS nanosheets.
From: Molecular dynamics insights into Ti3C2 MXene/chitosan composite as a flame-retardant barrier
a Snapshots of MXene/CS at 3000 K; b Snapshots of MXene/CS/O2 at 3000 K; c Gas product distribution of MXene, MXene/CS and MXene/CS/O2. d TGA-FTIR spectrum of MXene/CS in nitrogen; e TG-IR spectrum of MXene/CS in air; f Comparison of TG-IR spectrum at 850°C between MXene@Air, MXene/CS@Air and MXene/CS.
