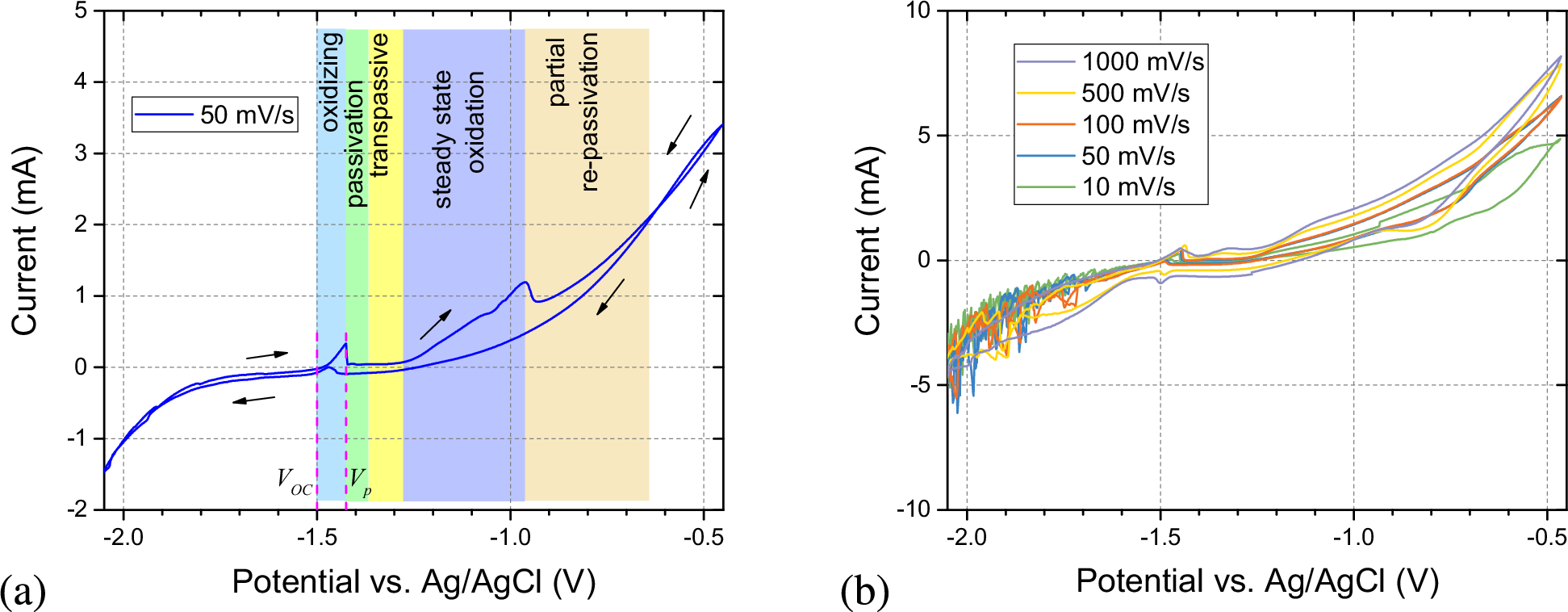

Fig. 2: Half-cell EGaIn/NaOH current–voltage relationships.
From: EGaIn tube memristors offering reliable switching on a biological time scale
a I−V response measured in 1 M NaOH using a scan rate of 50 mV/s. The open circuit voltage (VOC) and passivating potential (VP) are denoted by the dashed lines. The five different oxidation regions observed at positive potentials are shown. b Representative examples of half-cell I−V curves in 3 M NaOH at varying scan rates.
