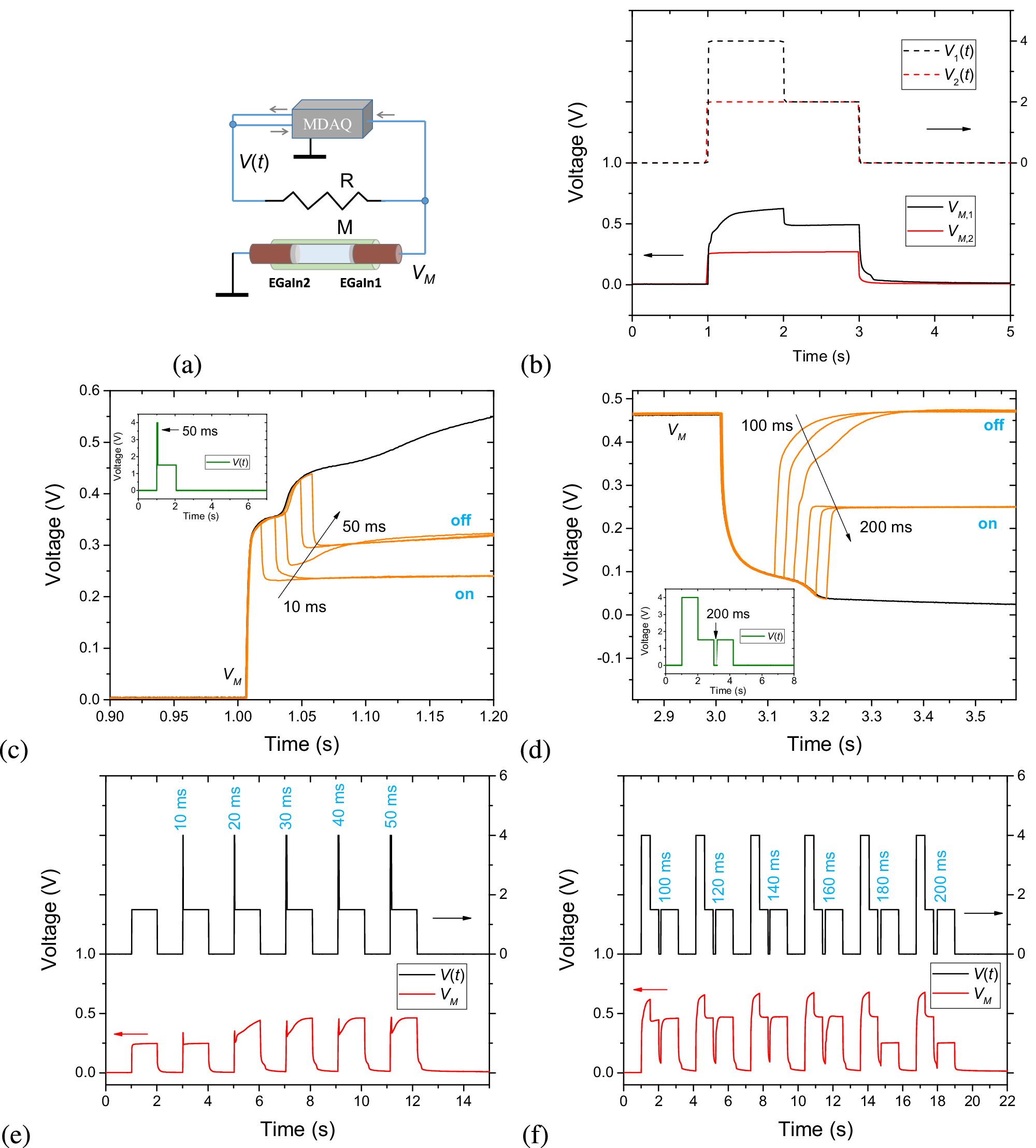

Fig. 5: Pulse control of EGaIn memristive devices.
From: EGaIn tube memristors offering reliable switching on a biological time scale
a The measurement setup (R = 10 kΩ). b Response to a stepwise voltage that is lower/higher than the switching threshold. Response to positive (c) and negative (d) voltage pulses for various chosen pulse durations. e, f Response to voltage pulse sequences. In c and d, the orange curves were obtained using fixed time increments of 10 ms and 20 ms, respectively.
