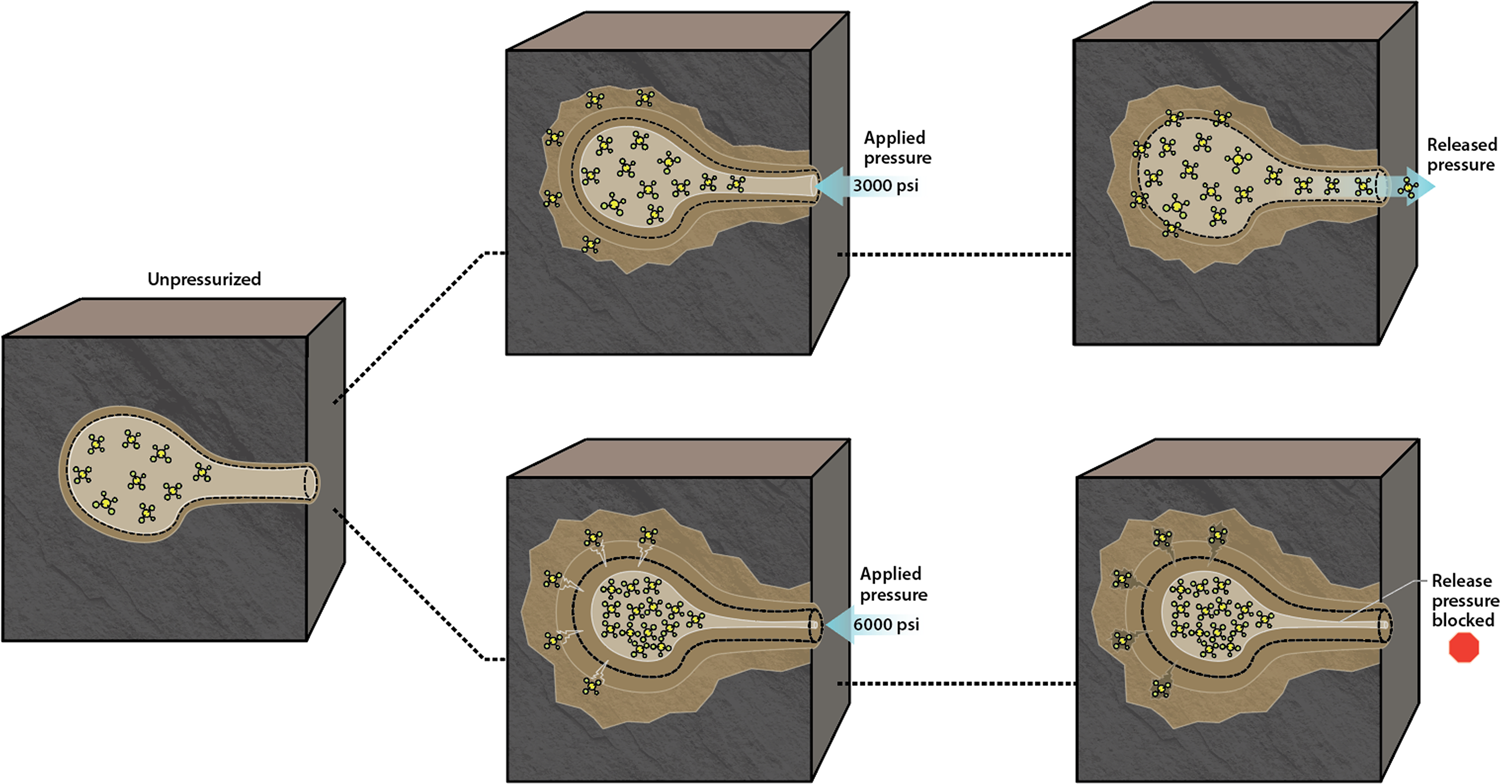

Fig. 6: Methane trapping proposed mechanism.
From: Reduced methane recovery at high pressure due to methane trapping in shale nanopores
Proposed mechanism for dense methane trapping in nanopores within the kerogen matrix. At higher pressures (6000 psi), irreversible deformation of the kerogen matrix results in methane retention in pores even after pressure drawdown.
