Fig. 7: Marcellus shale characterization.
From: Reduced methane recovery at high pressure due to methane trapping in shale nanopores

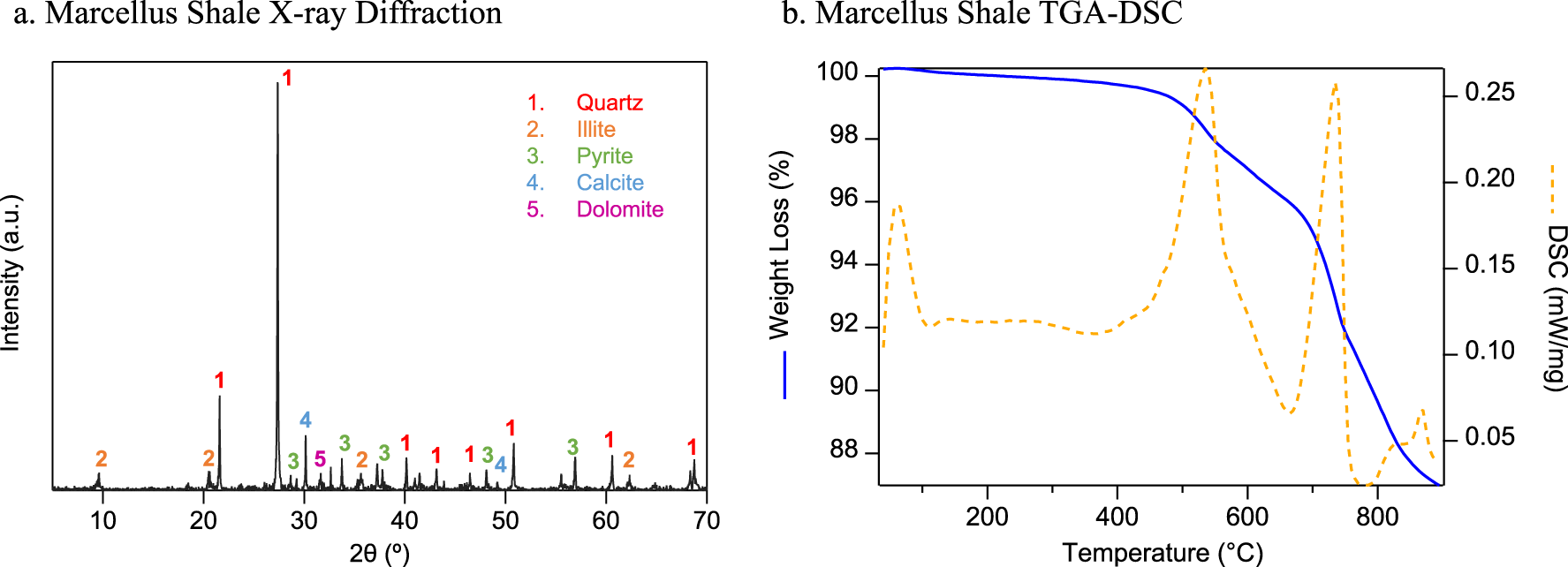

Marcellus shale core was characterized using (a) X-ray diffraction and (b) TGA-DSC. The solid blue line represents TGA data and dashed orange line represents DSC data.
