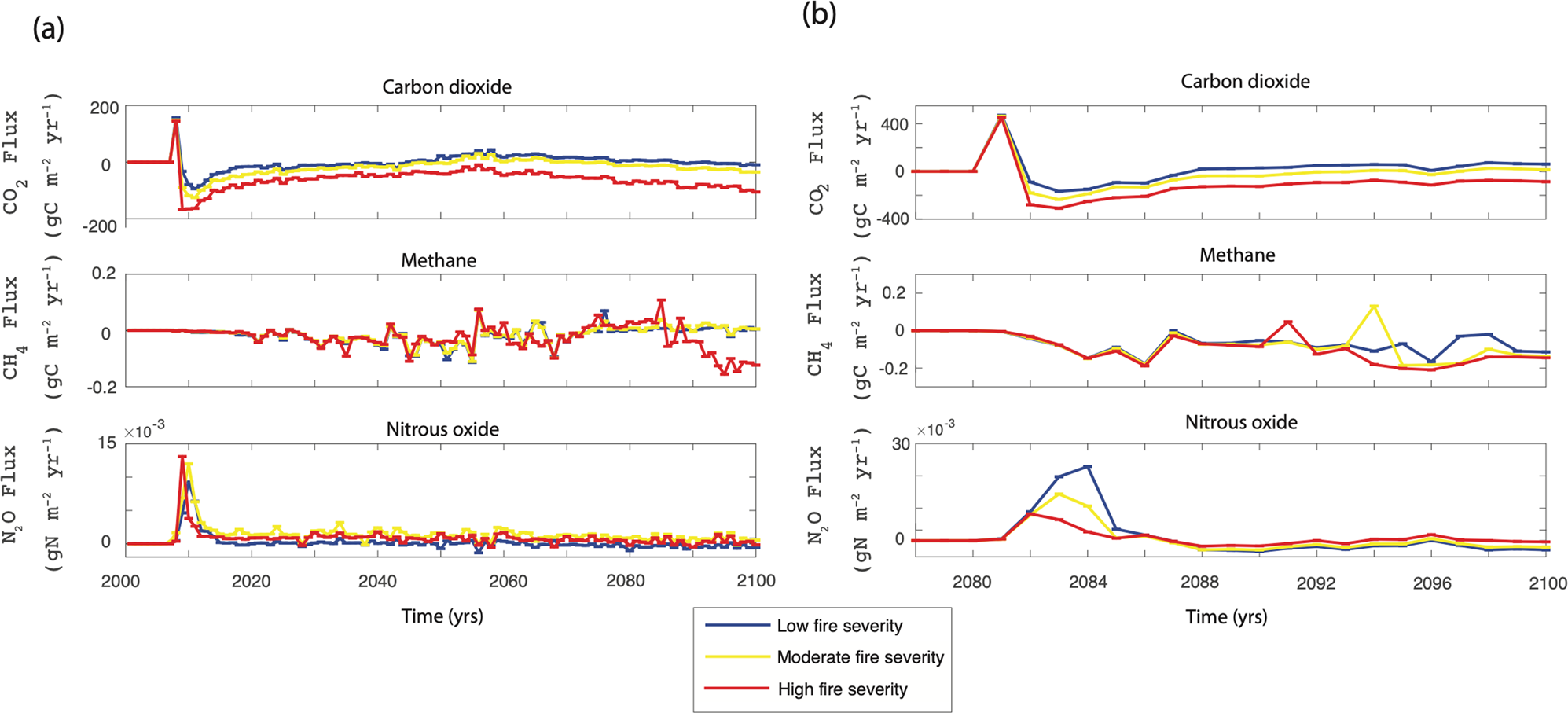

Fig. 8: Trace gas fluxes under the various fire scenarios.
From: Microbial contribution to post-fire tundra ecosystem recovery over the 21st century
Gas fluxes (CO2, N2O, CH4, annual mean ± standard error) were normalized to the baseline RCP8.5-no_fire simulation to highlight the impact of fire for a early-century fire (ignited in 2007), and b late-century fire (ignited in 2080). Note that the timescales for panels a (years 2000–2100) and b (years 2075–2100) are different. Note: positive values for gas fluxes represent emissions from the soil.
