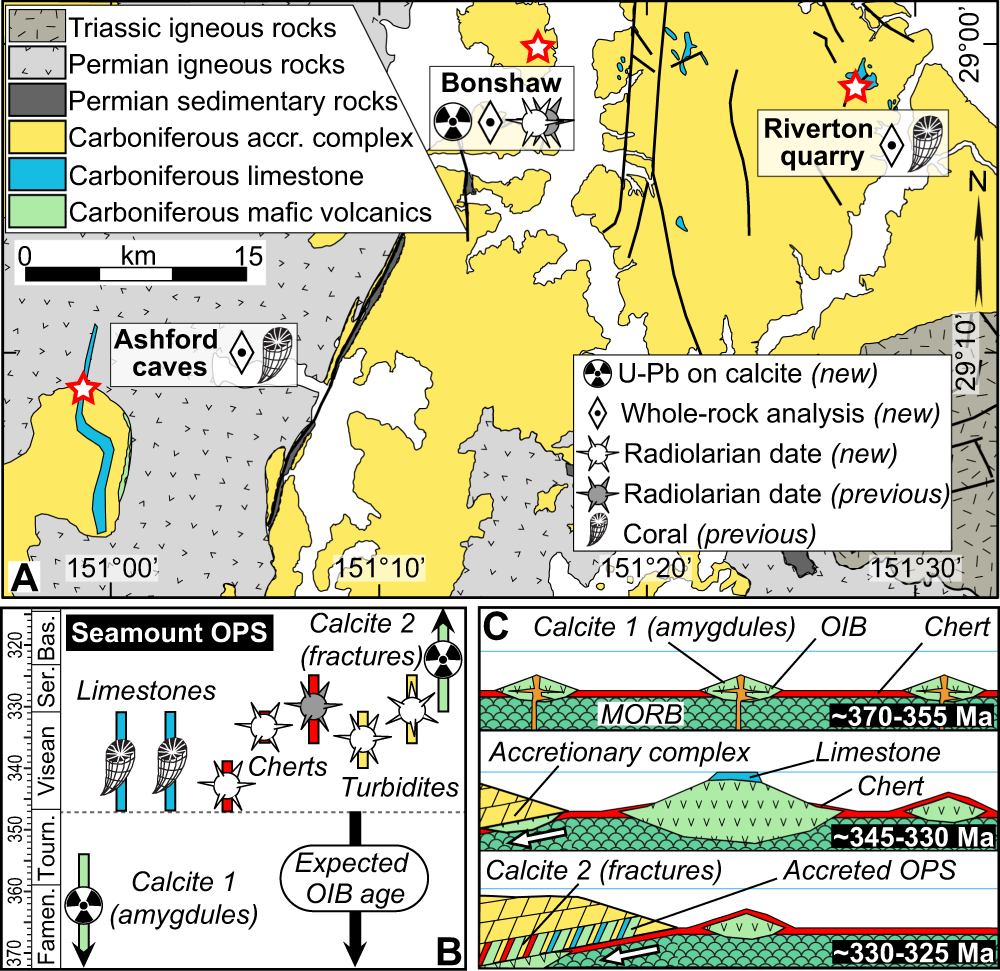

Fig. 2: Location, age, and tectonic interpretation of the sampled sections.
From: Paleozoic ocean plate stratigraphy unraveled by calcite U-Pb dating of basalt and biostratigraphy
A Geological map of the studied area (modified from ref. 35). New data: calcite U-Pb ages, radiolarian ages (white fill; radiolarian plate in Supplementary Fig. 4), and whole-rock geochemistry. Previous ages: corals34 and radiolarians33 (gray fill). B Age constraints on the late Paleozoic seamount OPS. C Reconstruction of Panthalassan seamount OPS at its times of formation and accretion to Gondwana. Accr. Accretionary, Bas. Bashkirian, Famen. Famennian, MORB Mid-ocean ridge basalt, OIB Ocean island basalt, Ser. Serpukhovian.
