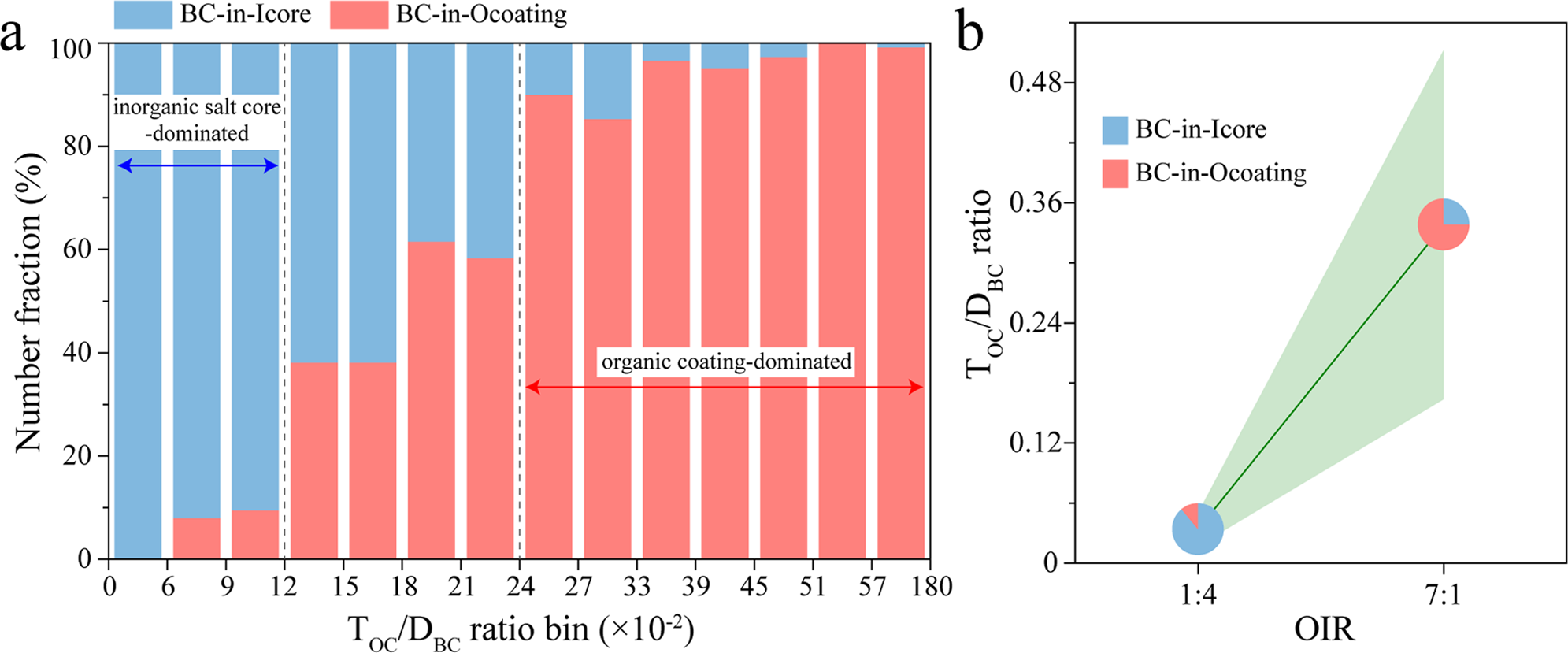

Fig. 4: Distribution of BC inside individual particles depending on the ratio of TOC/DBC.
From: Liquid-liquid phase separation reduces radiative absorption by aged black carbon aerosols
a Variation in the number fractions of field-observed BC-in-Icore and BC-in-Ocoating particles from the TOC/DBC ratio bins of 0–1.8. b Comparisons on the BC distribution and the TOC/DBC ratio of organic/inorganic/BC mixed particles generated from the suspensions with organic-to-inorganic dry mass ratio (OIR) = 1:4 and OIR = 7:1 in the laboratory. The green shadow indicates the standard deviation of the TOC/DBC ratio.
