Fig. 3: Wildfires in Siberia, from nitrogen emissions to deposition in the eastern Eurasian Basin. | Communications Earth & Environment

Fig. 3: Wildfires in Siberia, from nitrogen emissions to deposition in the eastern Eurasian Basin.

From: Wildfire aerosol deposition likely amplified a summertime Arctic phytoplankton bloom

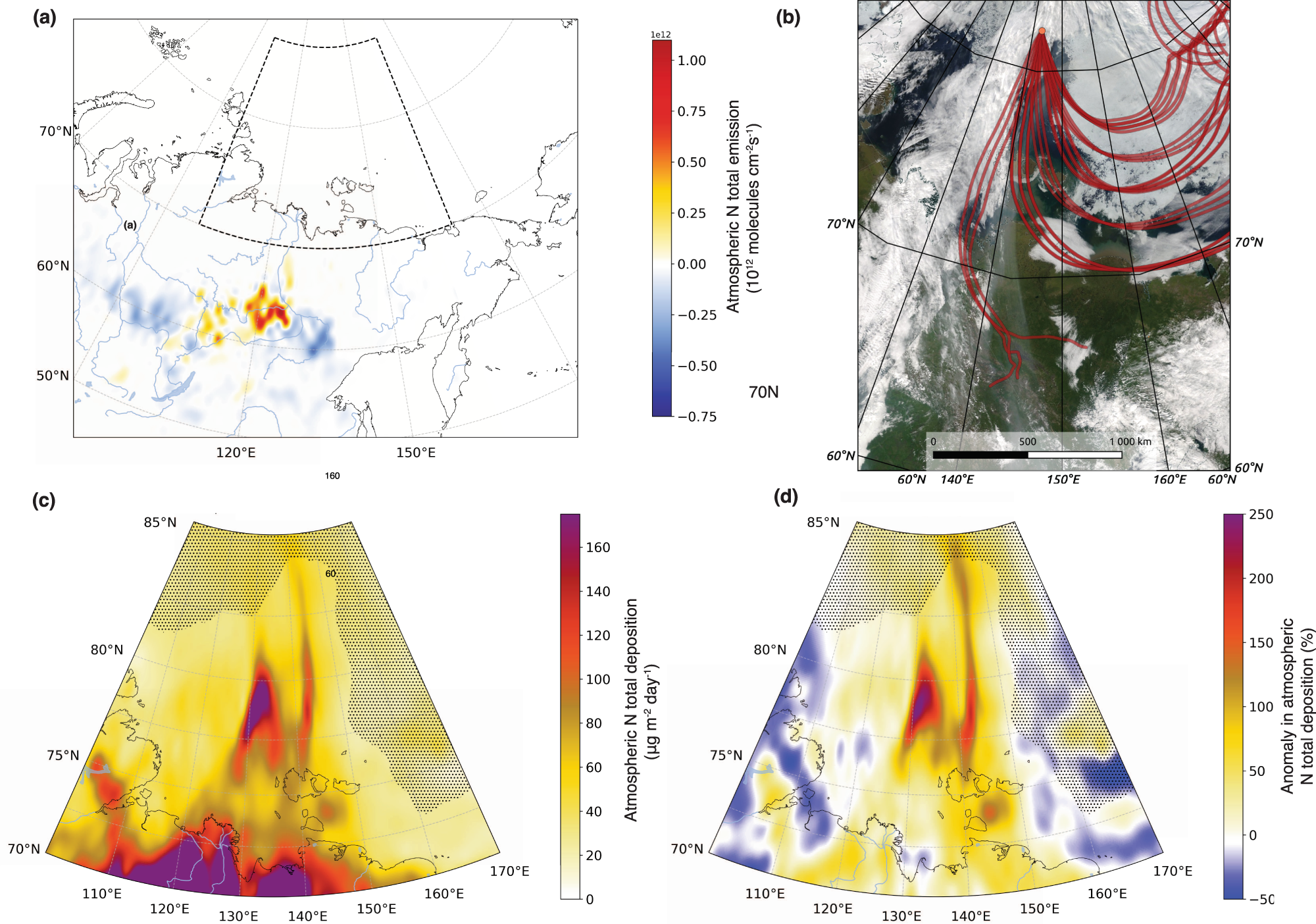

Fig. 3: Wildfires in Siberia, from nitrogen emissions to deposition in the eastern Eurasian Basin.

Modeled FINN fire emissions of N (July 15–August 14 2014 anomaly versus the 2002–2019 mean) (a) with a box showing the location of panels (c, d). MODIS visualization of the aerosol plume and corresponding HYSPLIT back-trajectories highlighting atmospheric transport pathways (in red) to the location of the bloom (b). Simulated N deposition flux in 2014 (c) and the related deposition anomaly versus the 2011–2016 mean N deposition flux (d).
