Fig. 2: Stacked bar relative abundance of 16S rRNA gene amplicon sequencing.

From: Gallionella and Sulfuricella populations are dominant during the transition of boreal potential to actual acid sulfate soils

Fig. 2: Stacked bar relative abundance of 16S rRNA gene amplicon sequencing.The alternative text for this image may have been generated using AI.

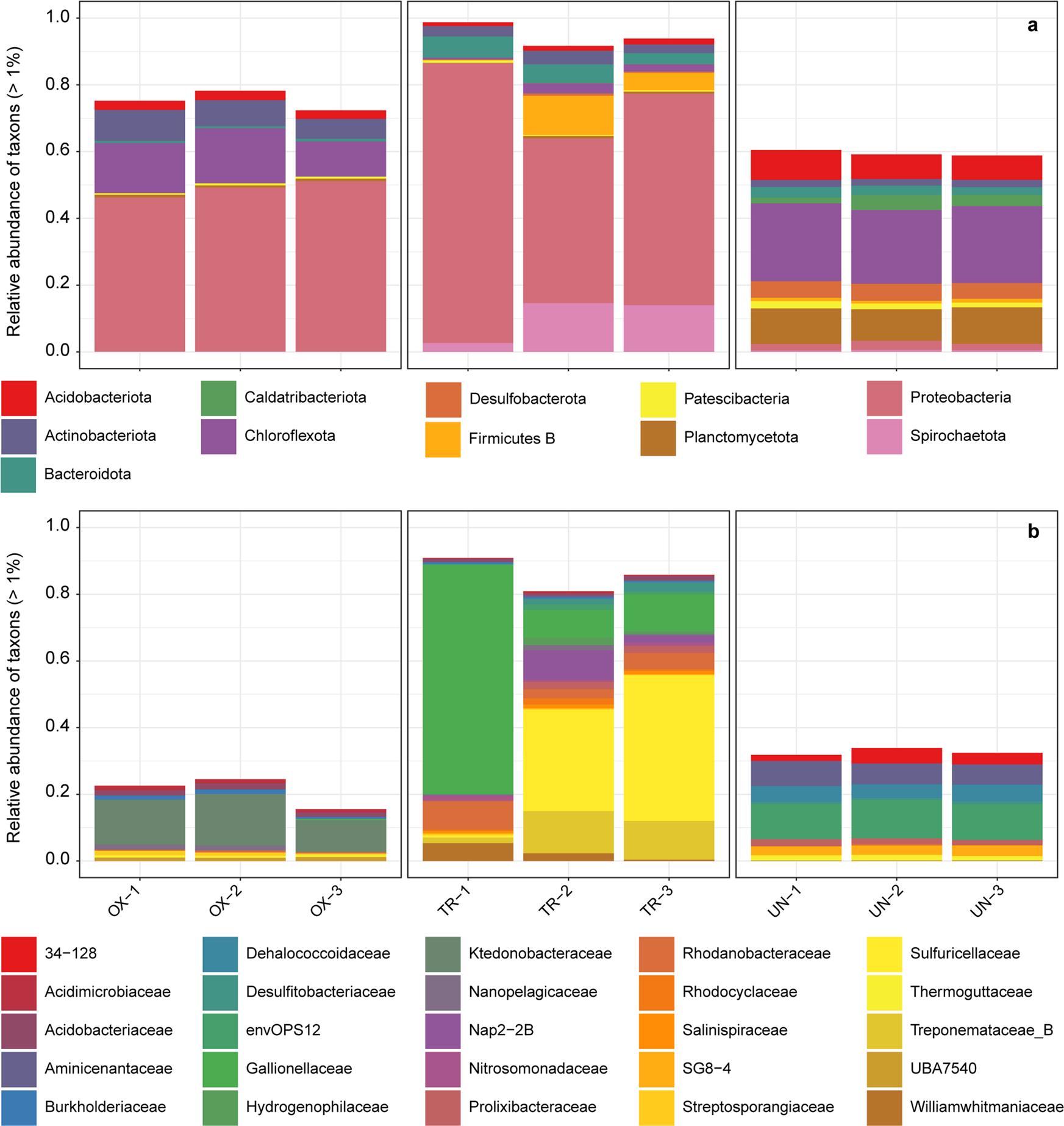

The stacked bars show three replicates for the oxidized (OX), transition (TR), and unoxidized (UN) zones assigned to phyla (a) and family (b). The remaining abundance consists of unassigned ASVs and phyla or families with a relative abundance of <1%.
