Fig. 6: The scatter between the TNBP area and the TCI thickness, and the correlation between the factors and the area. | Communications Earth & Environment

Fig. 6: The scatter between the TNBP area and the TCI thickness, and the correlation between the factors and the area.

From: Transiting consolidated ice strongly influenced polynya area during a shrink event in Terra Nova Bay in 2013

Fig. 6: The scatter between the TNBP area and the TCI thickness, and the correlation between the factors and the area.The alternative text for this image may have been generated using AI.

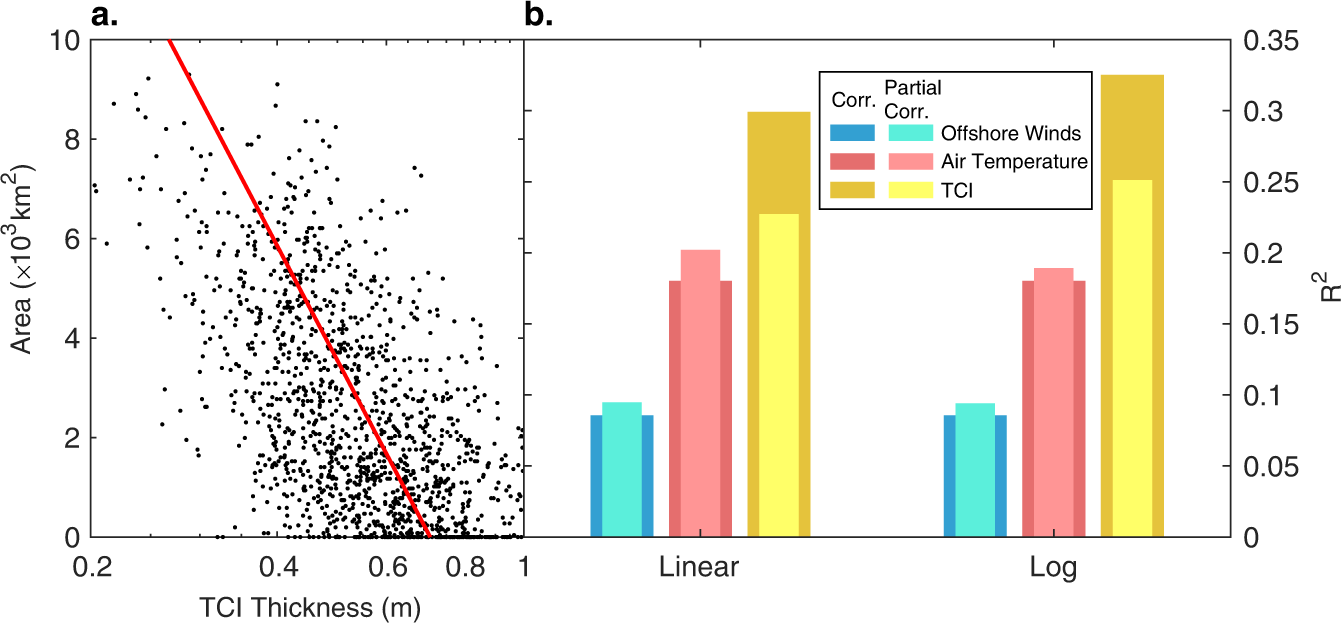

a Scatter and trend line (red) of negative exponent. b Offshore wind speed, air temperature, and TCI thickness. The left bars represent the results from the raw ice thickness and the right bars represent the results that the ice thickness is taken the logarithm. The outside bars show the correlation coefficient and the inside bars show the partial correlation coefficient.
