Fig. 8: The factor analysis for sea ice volume in the potentially affected region.

From: Transiting consolidated ice strongly influenced polynya area during a shrink event in Terra Nova Bay in 2013

Fig. 8: The factor analysis for sea ice volume in the potentially affected region.The alt text for this image may have been generated using AI.

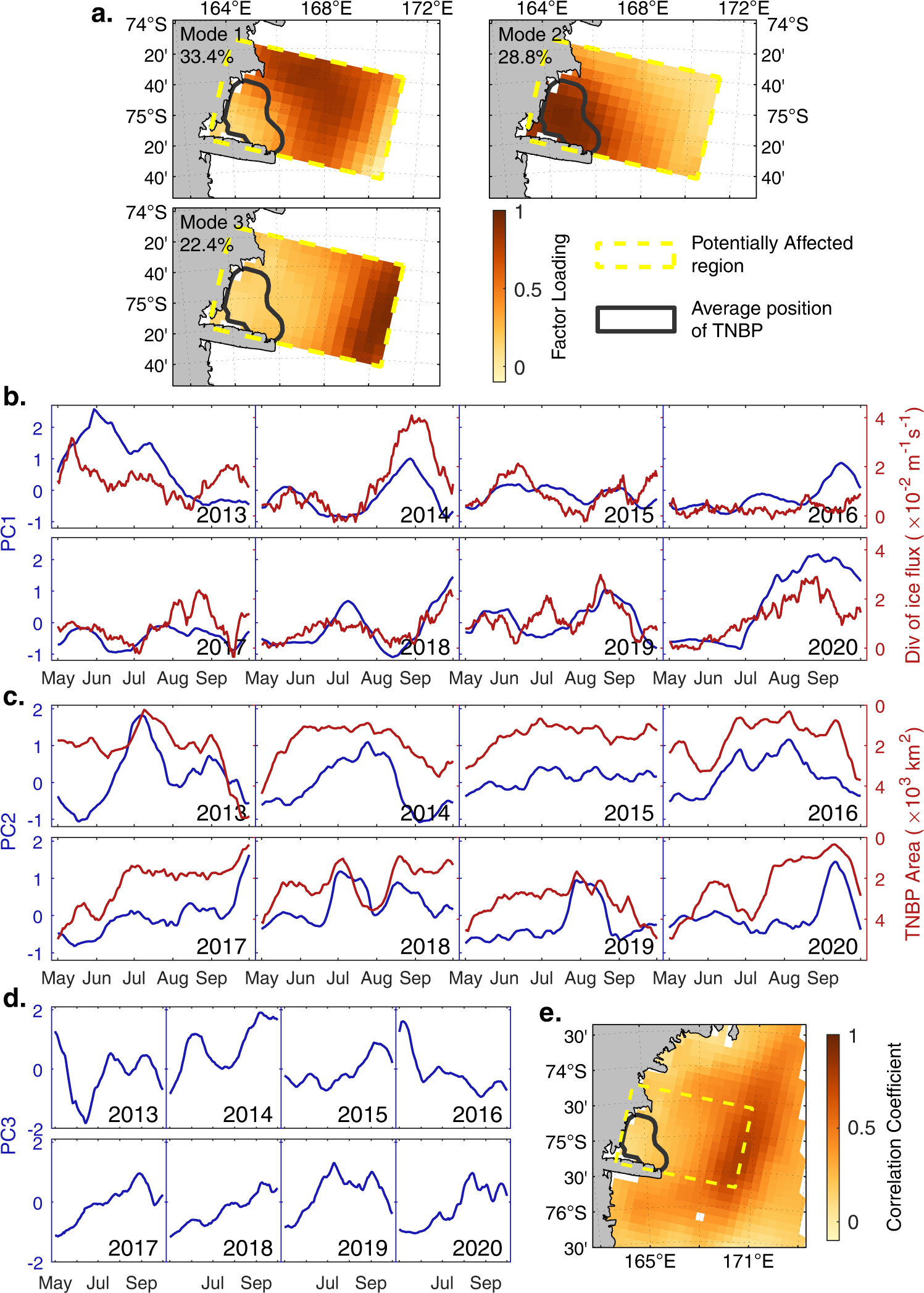

a Factor loadings and variance (contributes to each mode 1-3). b Principal component 1 (PC1, blue line) and sea ice flux divergence (calculated in the region where the factor loading of mode 1 is larger than 0.5, red line). c Principal component 2 (PC2, blue line) and area of the TNBP (red line). d Principal component 3 (PC3). e Correlation coefficient between sea ice thickness and PC3. The yellow box in (a) and (e) is the potentially affected region, and the grey line shows the mean position of the TNBP. A 30-day window smooth is done for (b–d).
