Fig. 2: Electricity and hydrogen demand by sector and demand for biogenic and synthetic zero-carbon fuels by sector (electricity storage refers to stationary storage).

From: An assessment of energy system transformation pathways to achieve net-zero carbon dioxide emissions in Switzerland

Fig. 2

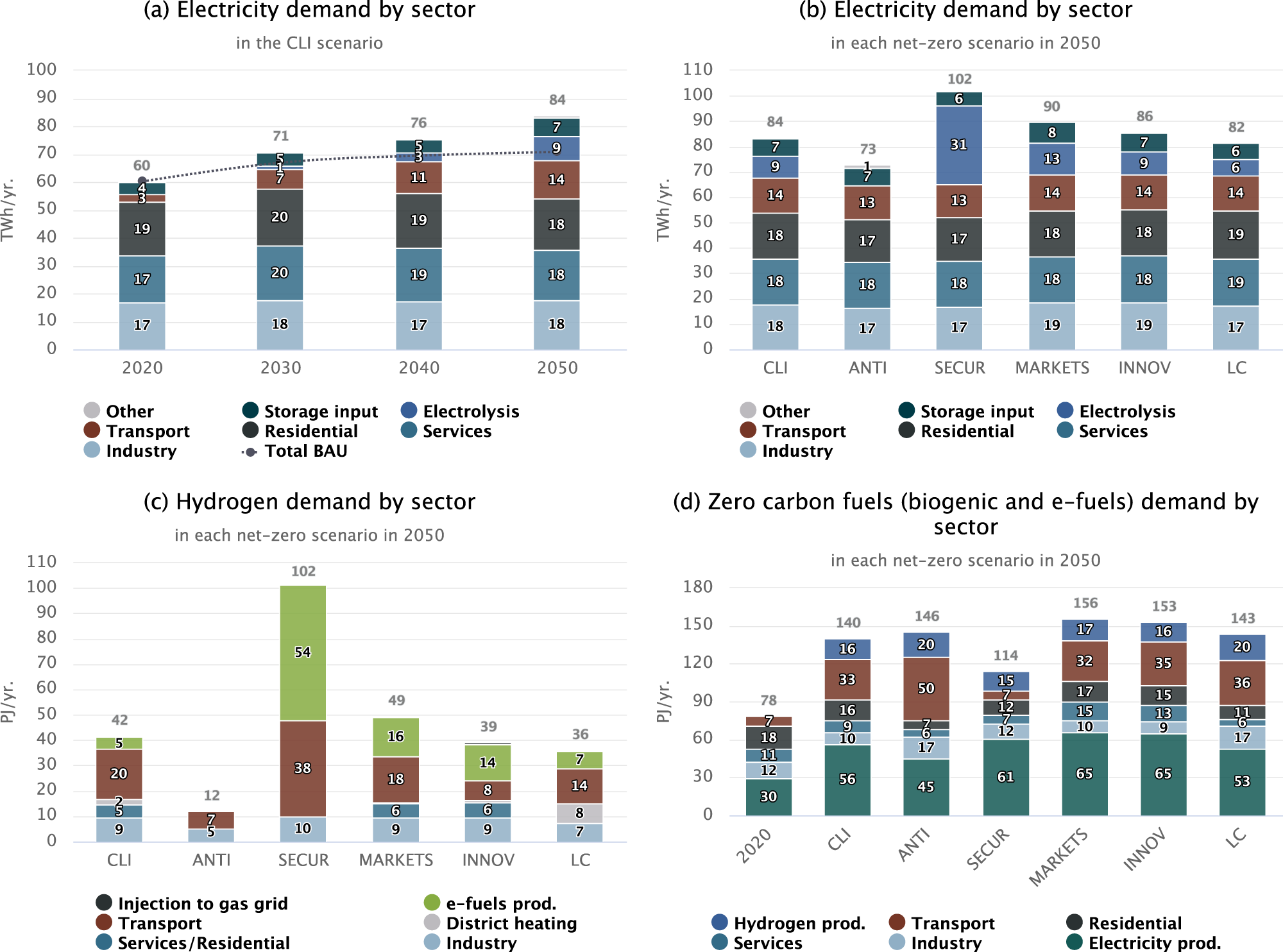

Panel (a) shows the electricity demand by sector in the CLI scenario, while the dotted line represents the total electricity demand in the BAU scenario. Panel (b) compares the electricity demand by sector in 2050 across all the net-zero CO2 emissions scenarios assessed in the study. Panel (c) displays the hydrogen consumption by sector, including the hydrogen directly injected into the natural gas grid. Finally, panel (d) shows the consumption of the zero-carbon fuels, of biogenic or synthetic source, by sector in the different net-zero scenarios assessed in the study. The bold numbers at the top of each bar denote the total of the quantities shown in the bar.
