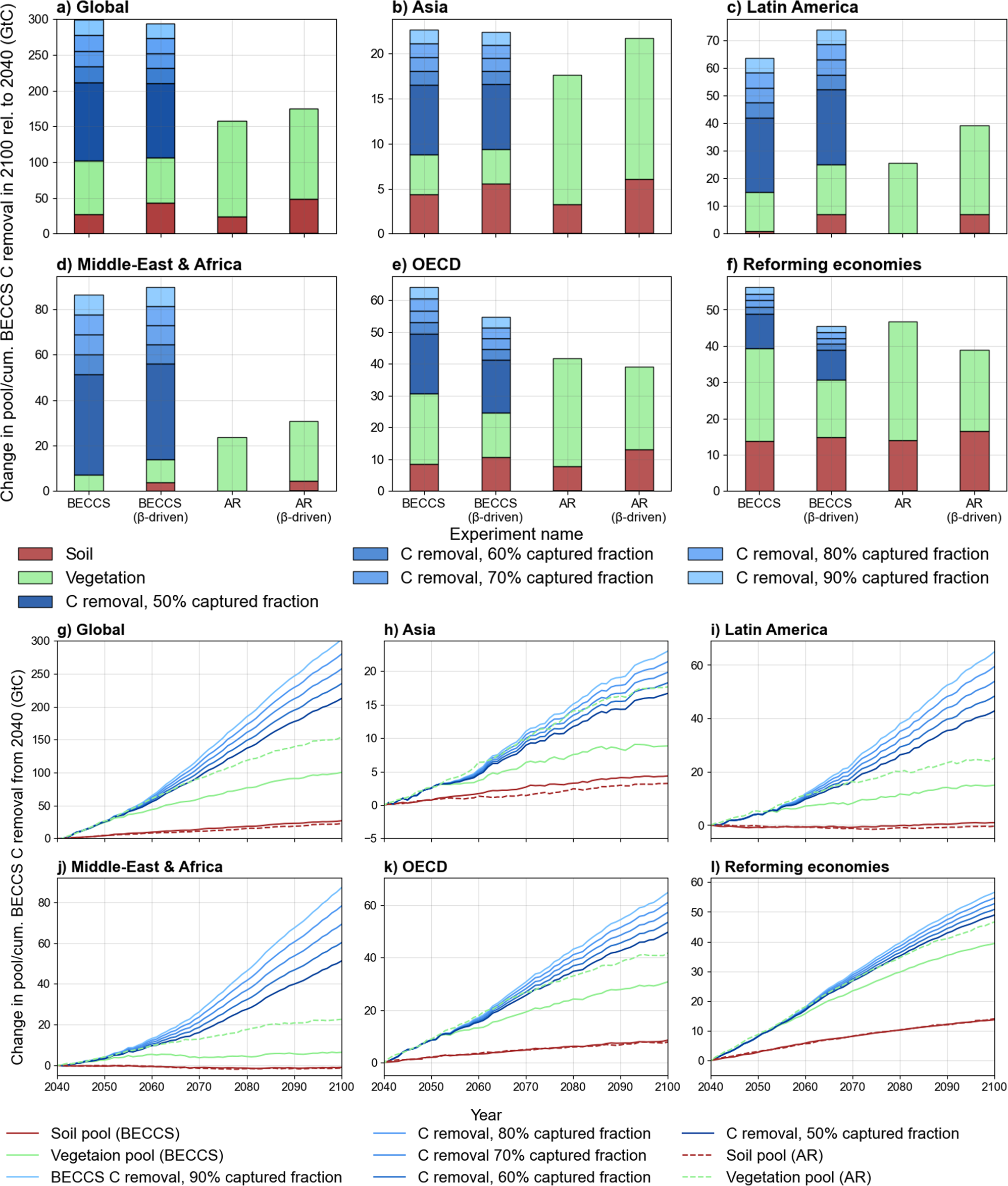

Fig. 5: Changes in the land carbon budget, including BECCS carbon removal.
From: Relative benefits of allocating land to bioenergy crops and forests vary by region
Changes in the soil (brown), vegetation (green) carbon pools, and BECCS carbon removal, assuming permanently captured carbon fraction from 50 to 90% (light blue to dark blue) in the BECCS and AR SSP5-3.4-OS experiments from the fully coulped simulations and simulations that do not consider climate feedbacks over the 2040–2100 period globally a and regionally b–f, and the temporal changes (stacked) in contributors to land carbon budget globally g and regionally h–l. Regional allocation of carbon removal by BECCS refers to the location of biomass extraction. LUC emissions are accounted for in the estimates.
