Fig. 2: Zircon U-Pb age data and maps with sample localities of the Timor ophiolite.
From: The ephemeral history of Earth’s youngest supra-subduction zone type ophiolite from Timor

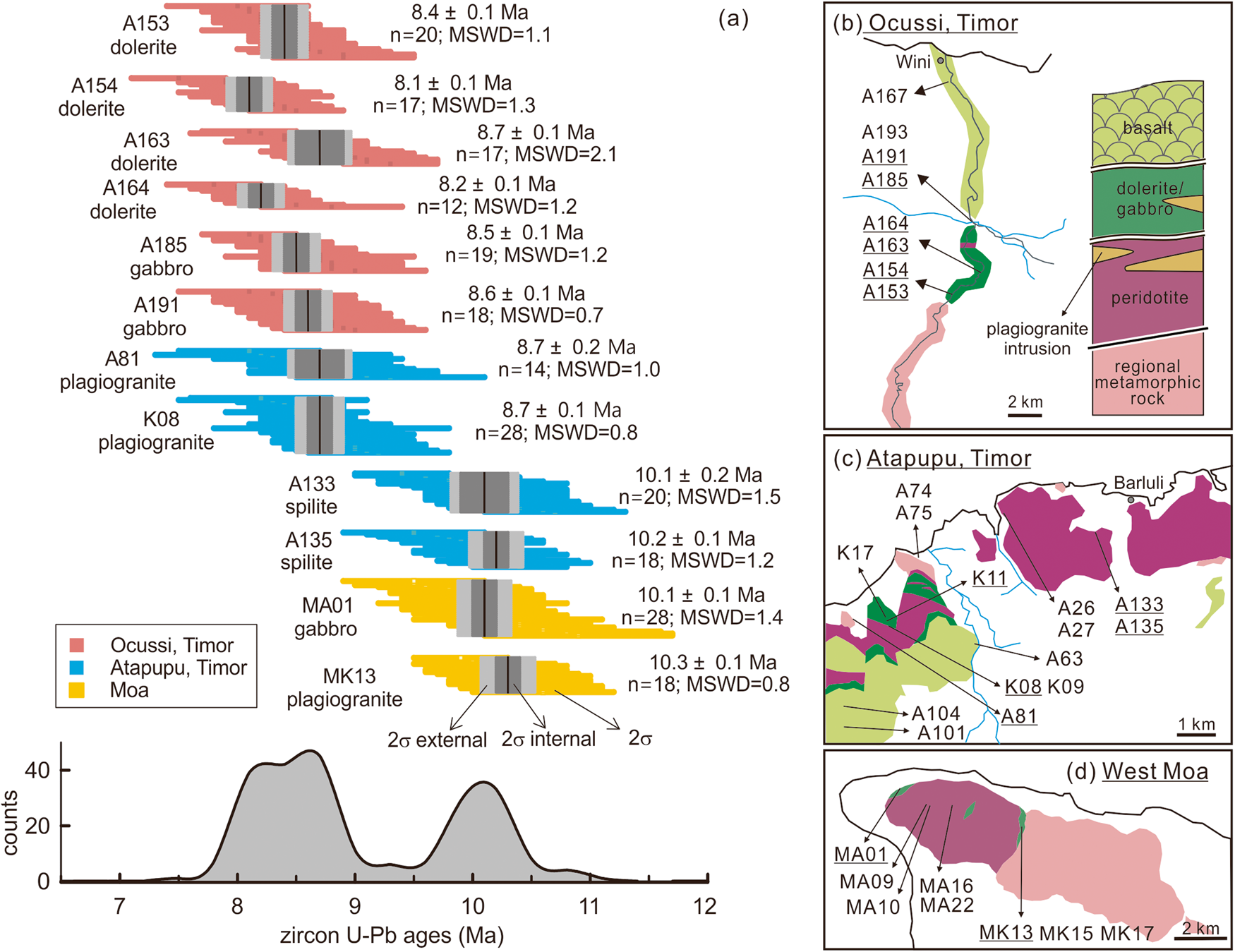

a Colored horizontal bands represent 206Pb/238U ages with ±2σ uncertainties of each zircon date. Vertical black lines indicate the weighted mean 206Pb/238U ages of each sample; with dark grey boxes showing ±2σ uncertainties calculated from mean square weighted deviation (MSWD) and light grey boxes showing the propagated ±2% errors for LA-ICPMS. Samples are plotted bottom to top according to the spatial distribution from east to west. A density plot of the age distribution of all samples is given in the lower part. b, c, d Geologic sketch maps with sample localities of Ocussi, Atapupu and West Moa areas, with dated samples underlined (West Moa map is modified from Kaneko et al.17). The legends in (b) are simplified rock successions of the Timor ophiolite. The ophiolite rocks and overlying units are probably fault-bounded16.
