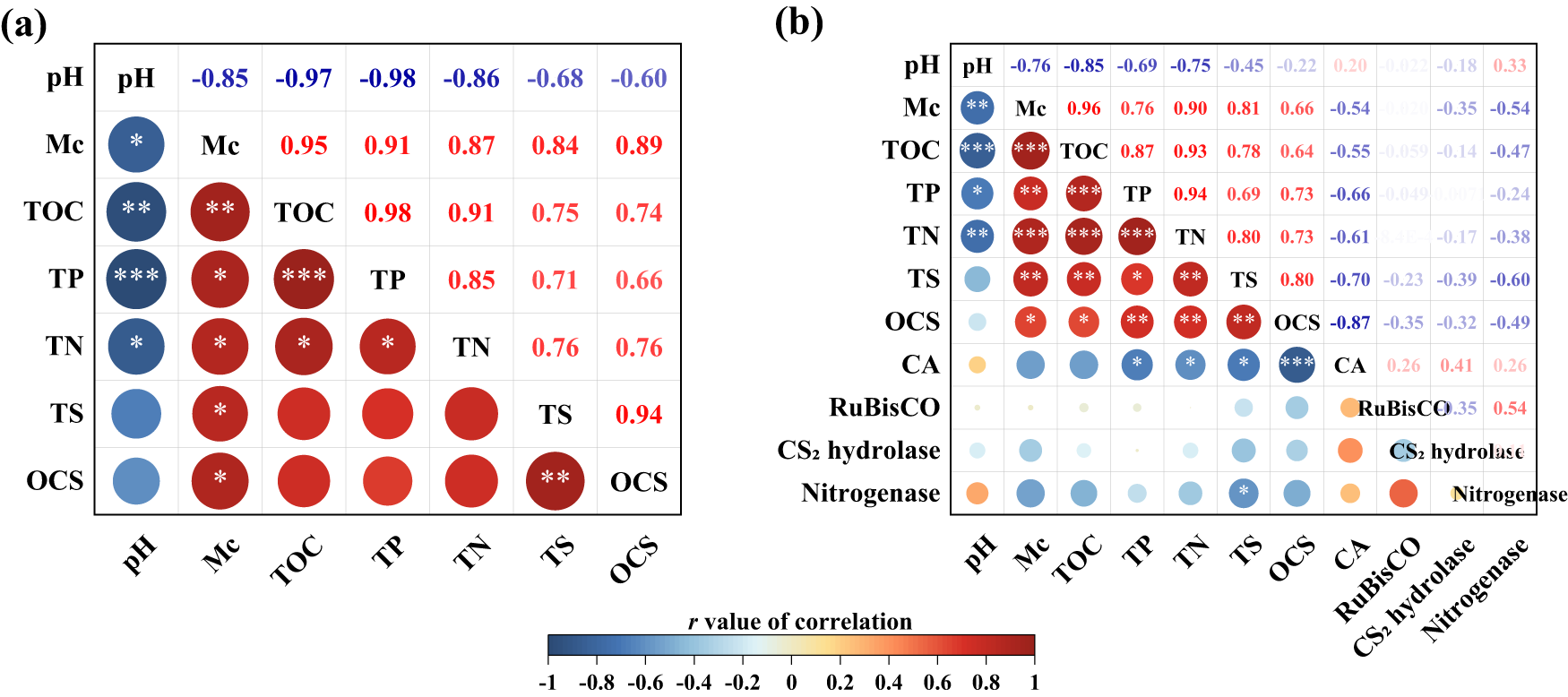

Fig. 3: Pearson correlations between OCS flux and different physiochemical parameters of the soils.
From: Sea animal colonies enhance carbonyl sulfide emissions from coastal Antarctic tundra
(a) in situ static chamber measurements and (b) laboratory-based incubations. *p < 0.05, **p < 0.01, and ***p < 0.001. The numbers in the cells are r values with color scales between −1 and 1. The size of the circles represented the absolute value of correlation. Mc soil moisture, TOC total organic carbon, TP total phosphorus, TN total nitrogen, and, TS total sulfur.
