Fig. 3: Quantifying the barchan migration response to varying levels of wind-blown sand. | Communications Earth & Environment

Fig. 3: Quantifying the barchan migration response to varying levels of wind-blown sand.

From: Strong-wind events control barchan dune migration

Fig. 3

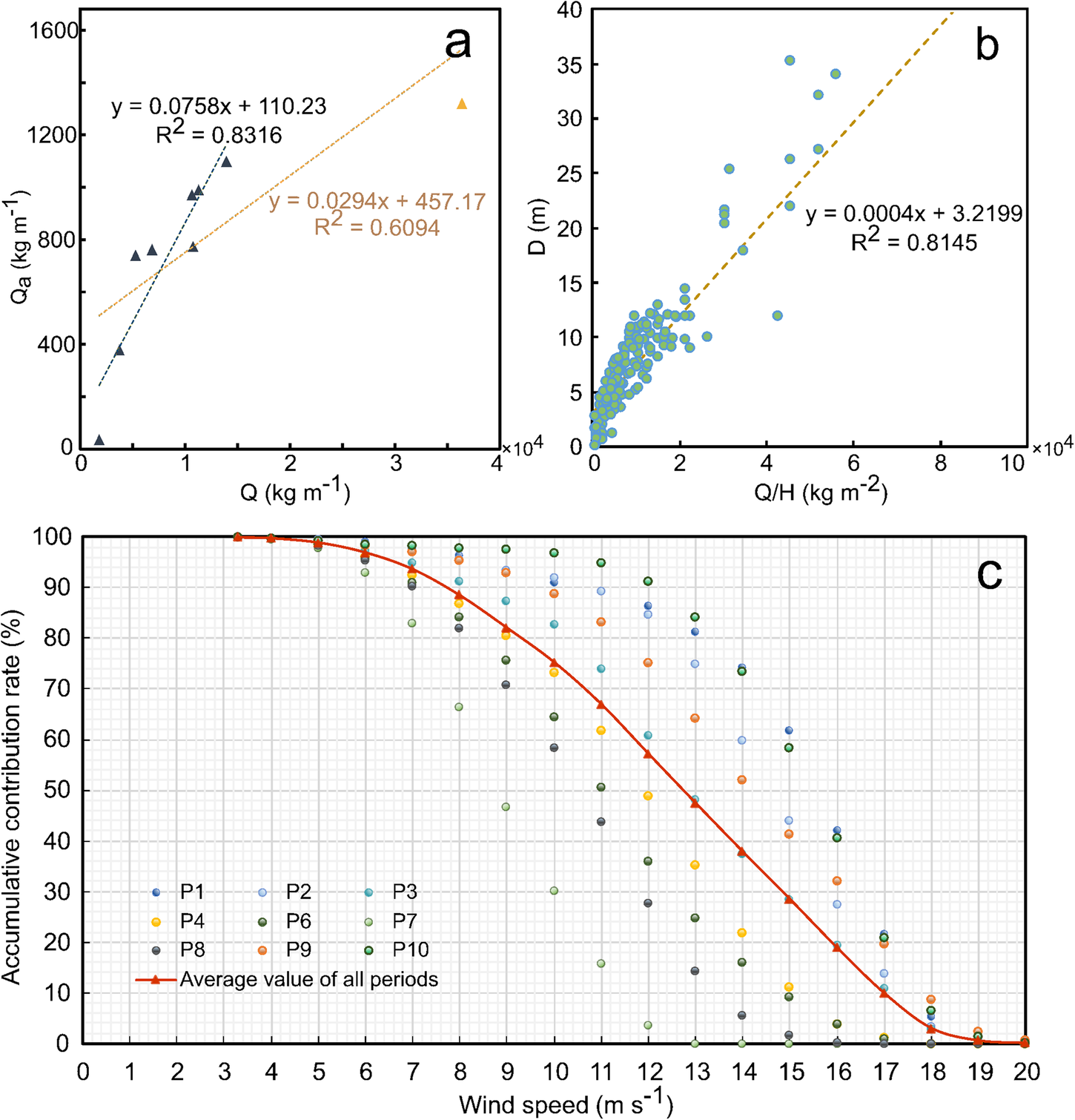

a High correlation of sand flux by comparing low-frequency measurements with BSNE traps (Qa) to high-frequency model calculations (Q). b Significant linear correlation between Q/H and D. c The contribution rate of different levels of wind speeds to the migration distance during different periods.
