Fig. 5: Trace element compositions of SW-1 titanite compared to U–Pb geochronology. | Communications Earth & Environment

Fig. 5: Trace element compositions of SW-1 titanite compared to U–Pb geochronology.

From: Cryptic geological histories accessed through entombed and matrix geochronometers in dykes

Fig. 5

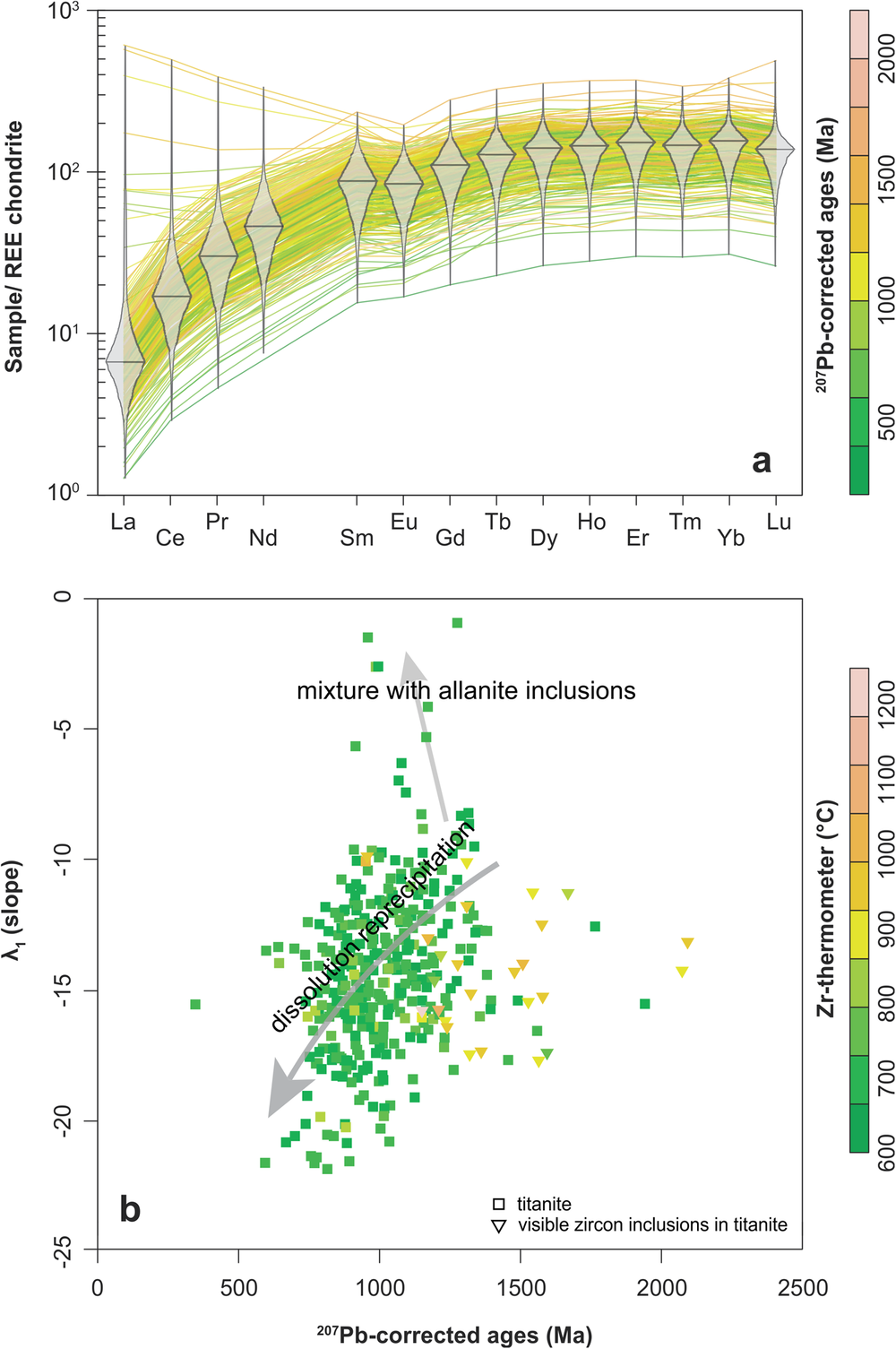

a REE spider diagram (normalised to chondrite), colour-coded for apparent 207-corrected age. Violin plot of element distribution overlaid on REE profiles. b λ1 parameter (slope) plotted against apparent age, colour-coded for apparent Zr-in-titanite temperature, with arrows representing interpreted processes.
