Fig. 7: Images of titanite grains with mineral inclusions.
From: Cryptic geological histories accessed through entombed and matrix geochronometers in dykes

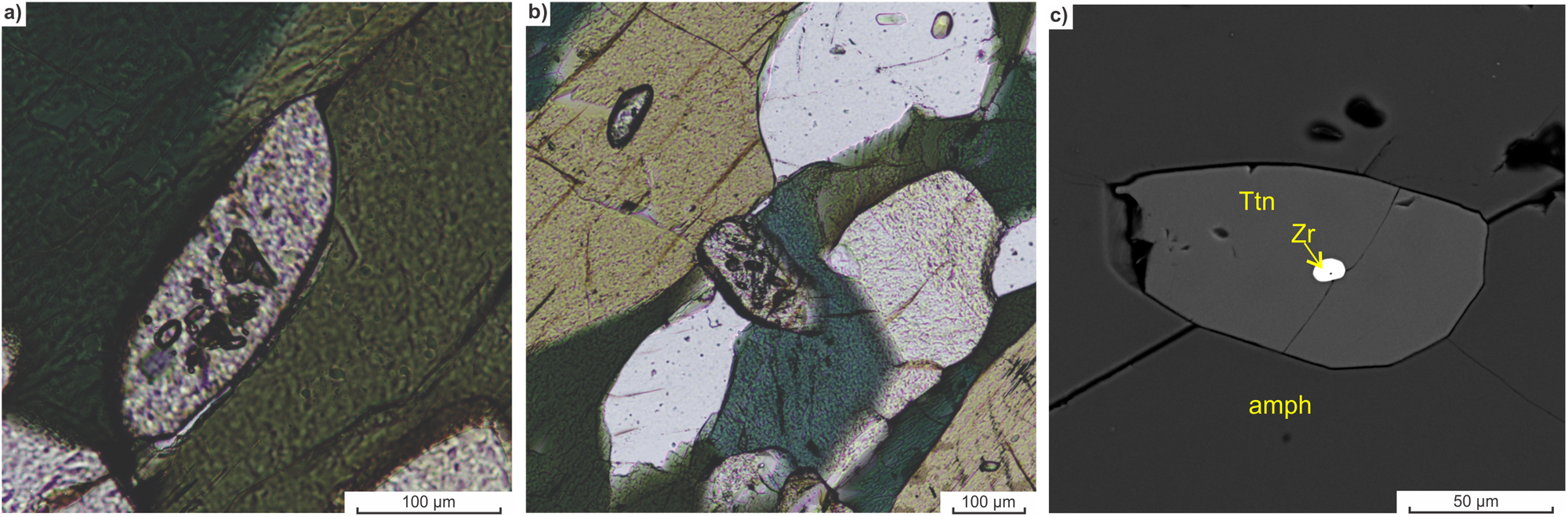

a, b Transmitted light photomicrograph mosaic of titanite grains within SW-1, revealing large number of zircon inclusions. c Backscatter electron image of zircon inclusion within titanite. Ttn titanite, amph amphibole, zr zircon.
