Fig. 4: Trajectory locations at the end of the 20 years simulation.
From: Pathways and timescales of Southern Ocean hydrothermal iron and manganese transport

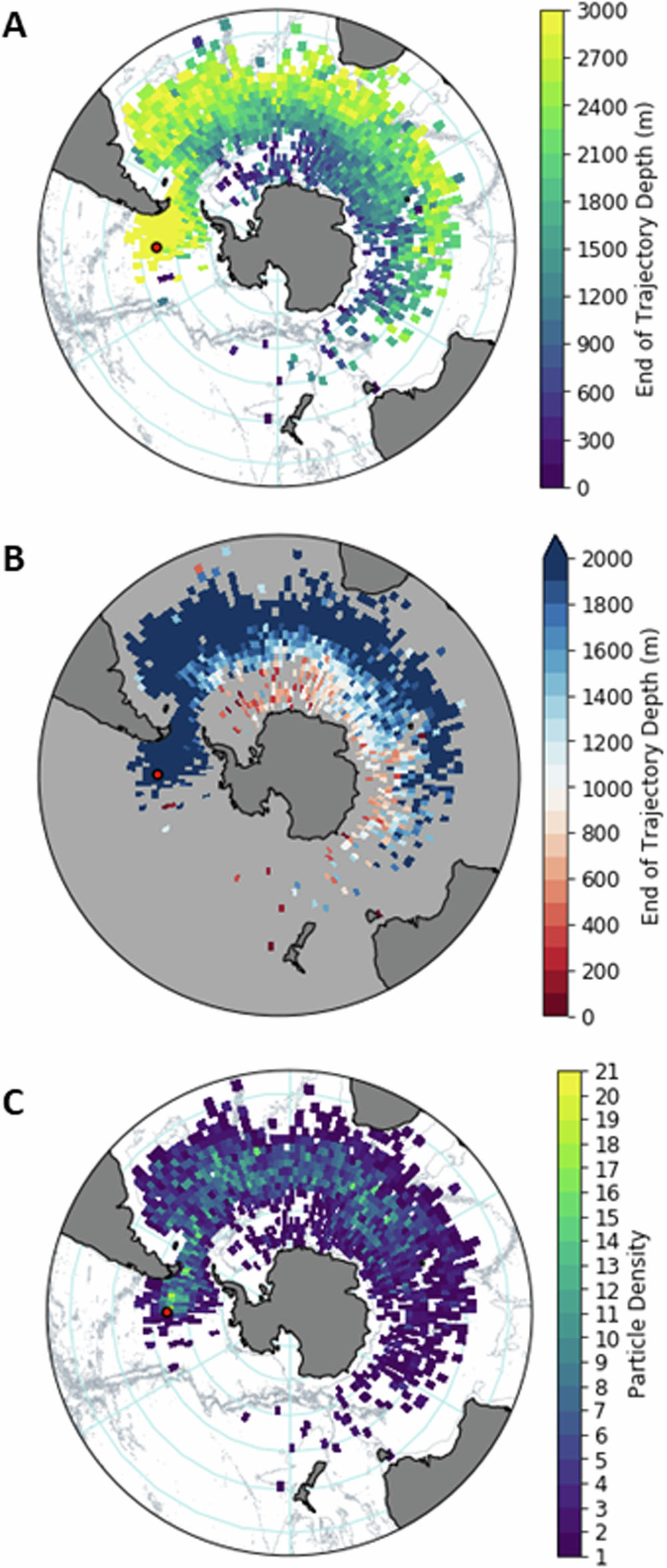

Indication of trajectory locations at the end of the 20-year simulation from the source regions. A Trajectory depth and location at 20 years and B the depths presented as above (red) and below (blue) the absolute maximum winter mixed layer depth in the SO (1000 m). C Trajectory density at 20 years. OOI is shown by the red marker. Note that only trajectories that passed within the cruise transect (OOI to 60° S) and the observed hydrothermal signal depth range (2000–4000 m) are shown.
