Fig. 1: Map of the southwestern Baltic Sea. Blue shading indicates the bathymetry. | Communications Earth & Environment

Fig. 1: Map of the southwestern Baltic Sea. Blue shading indicates the bathymetry.

From: Calcite is an efficient and low-cost material to enhance benthic weathering in shelf sediments of the Baltic Sea

Fig. 1

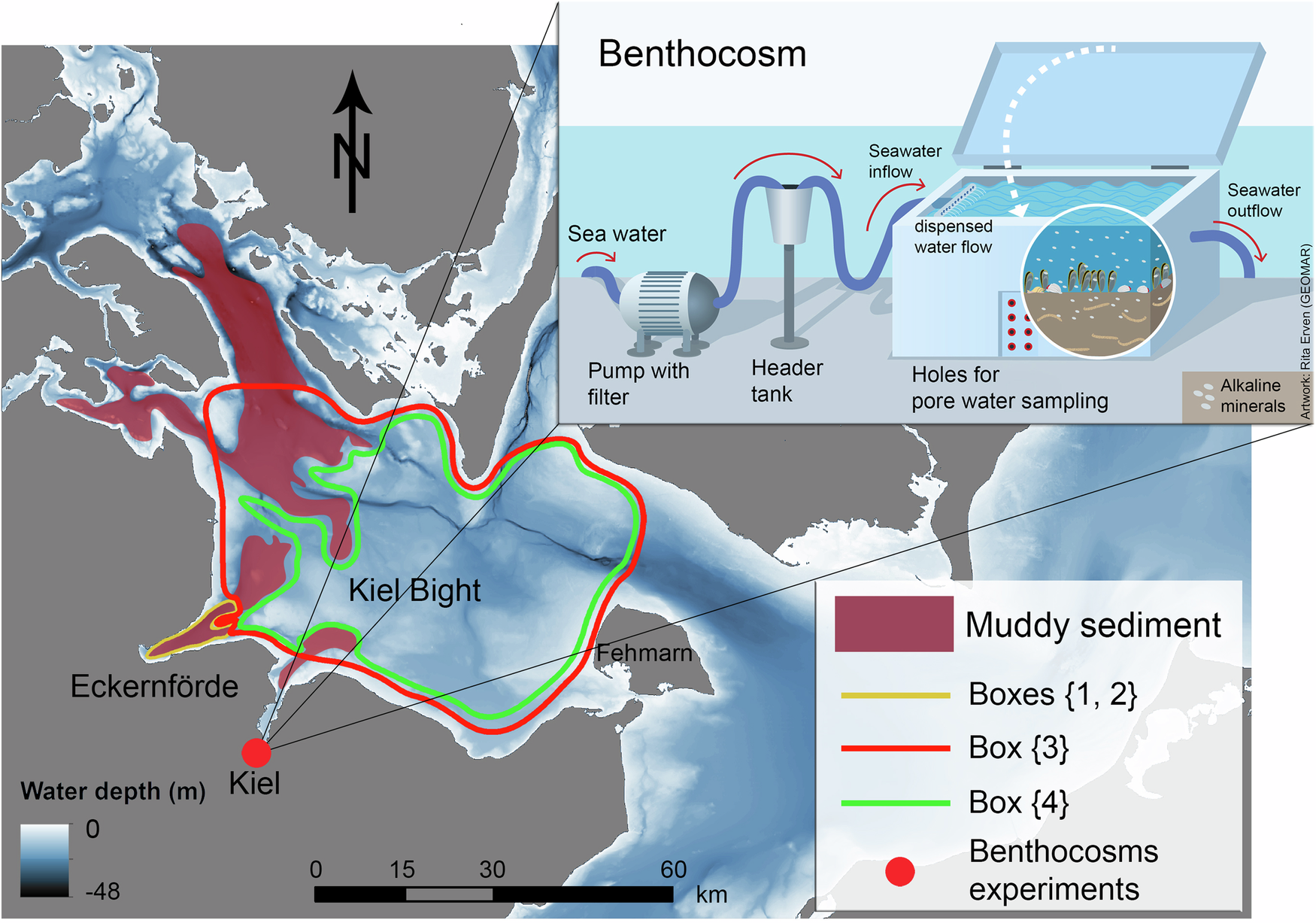

Red areas denote the distribution of muddy sediments47. The adjacent sediment consists of gravel and sand with low organic carbon content. Yellow, red, and green lines describe the approximate spatial extent of the boxes considered for the box-model (Supplementary Fig. S1), where the yellow area is the area of application. The insert (upper right) shows a schematic sketch of the benthocosms used for the long-term experiment. Modified after Riebesell et al. 25.
