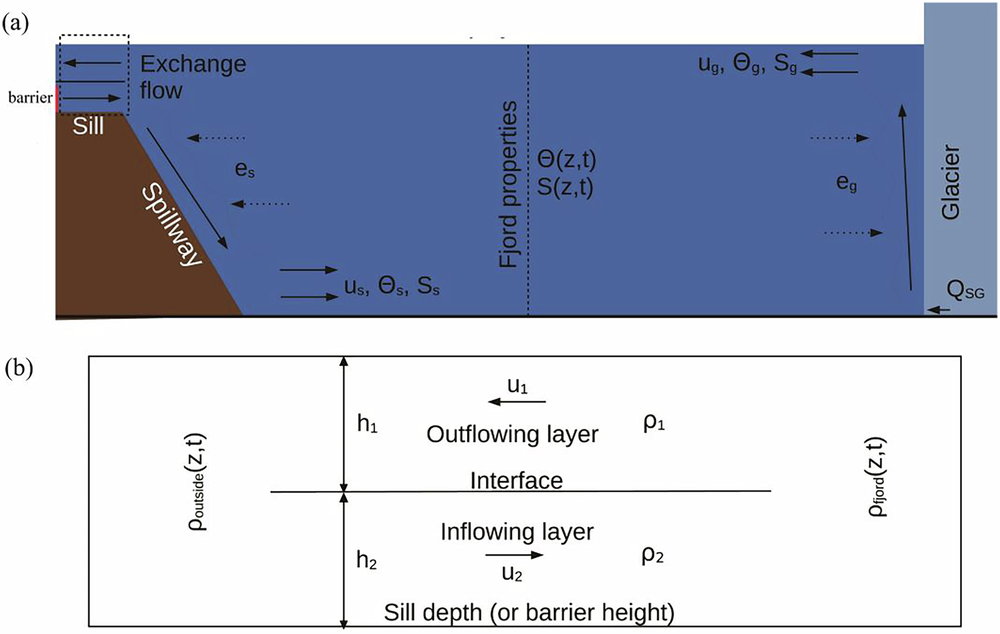

Fig. 8: Schematic of the sill and fjord model geometry.
From: Active ice sheet conservation cannot stop the retreat of Sermeq Kujalleq glacier, Greenland
The red bar at the left side of (a) represents the barrier; the exchange flow details over the sill or barrier are shown in (b).
