Fig. 4: IOD east/west correlation linked to mean state rainfall.
From: Climate change alters the Indian Ocean Dipole and weakens its North Atlantic teleconnection

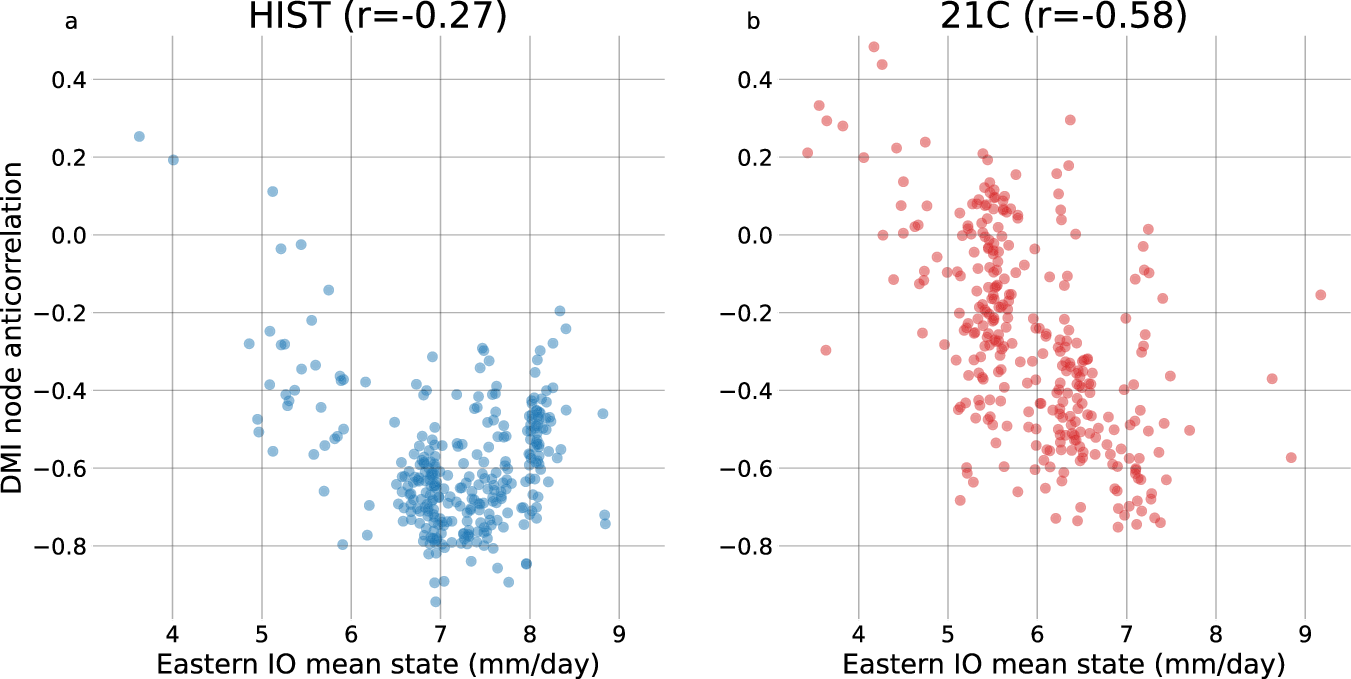

Panels show scatter plots of mean rainfall in the expanded IOD east node vs strength of correlation between IOD west and IOD east nodes for a HIST and b 21C.
