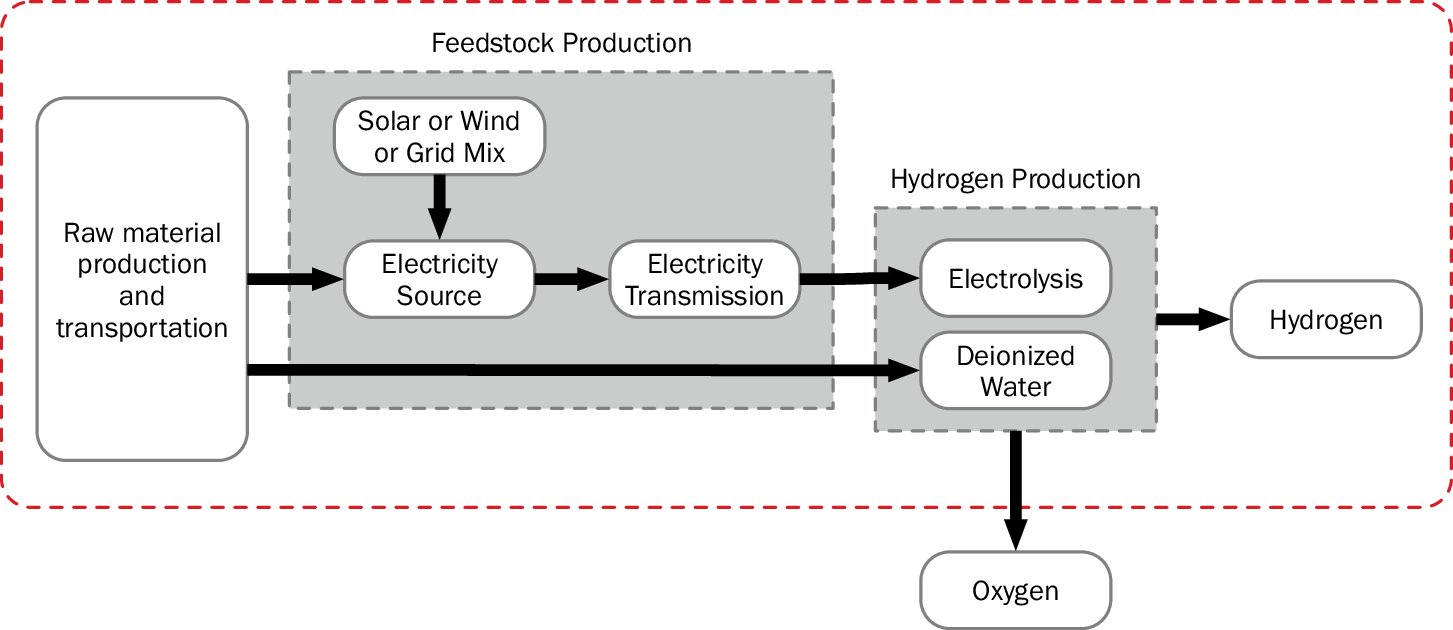

Fig. 7: The supply chain for hydrogen production through electrolysis used in this study.
From: Effect of hydrogen leakage on the life cycle climate impacts of hydrogen supply chains
The system boundary (shown as a red dashed line) includes upstream CAPEX emissions for electricity production.
