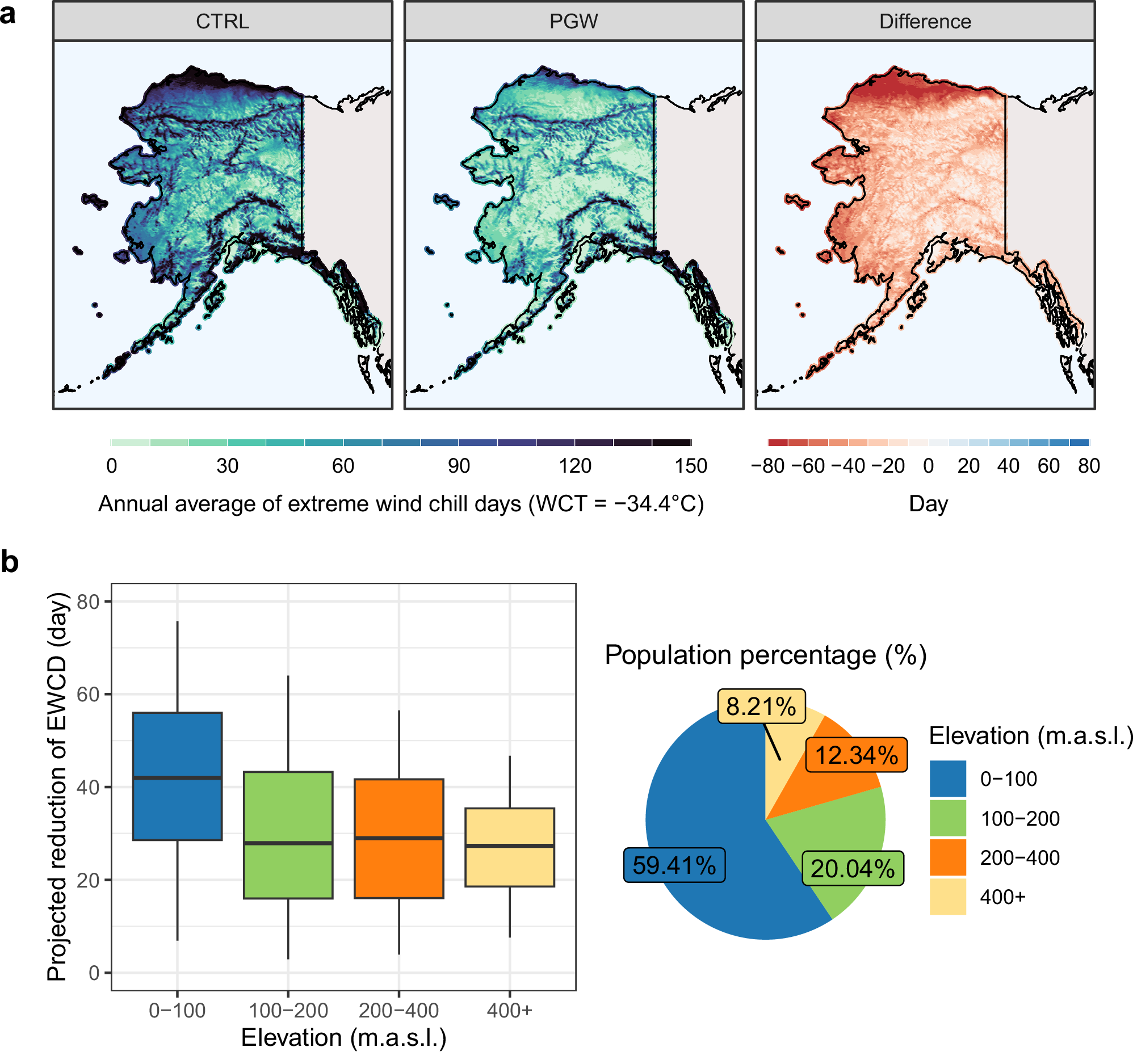

Fig. 1: Impact of climate change on the climatology of extreme wind chill days (EWCDs).
From: Climate change reduces the wind chill hazard across Alaska
a The annual average of EWCD across Alaska is shown for the CTRL simulation (left panel on the top) and the PGW simulation (middle panel on the top), with the difference between PGW and CTRL (i.e., PGW-CTRL) shown in the right panel on the top. These differences are statistically different from zero at the 5% level across the vast majority of the state, with the exception of the locations in Supplementary Fig. 1. b The boxplots in the bottom-left panel show the projected reduction of EWCD across different elevation ranges, using the 5 and 95% percentiles to represent the lower and upper limits. To the right, the pie chart to its right displaying the corresponding population percentage.
