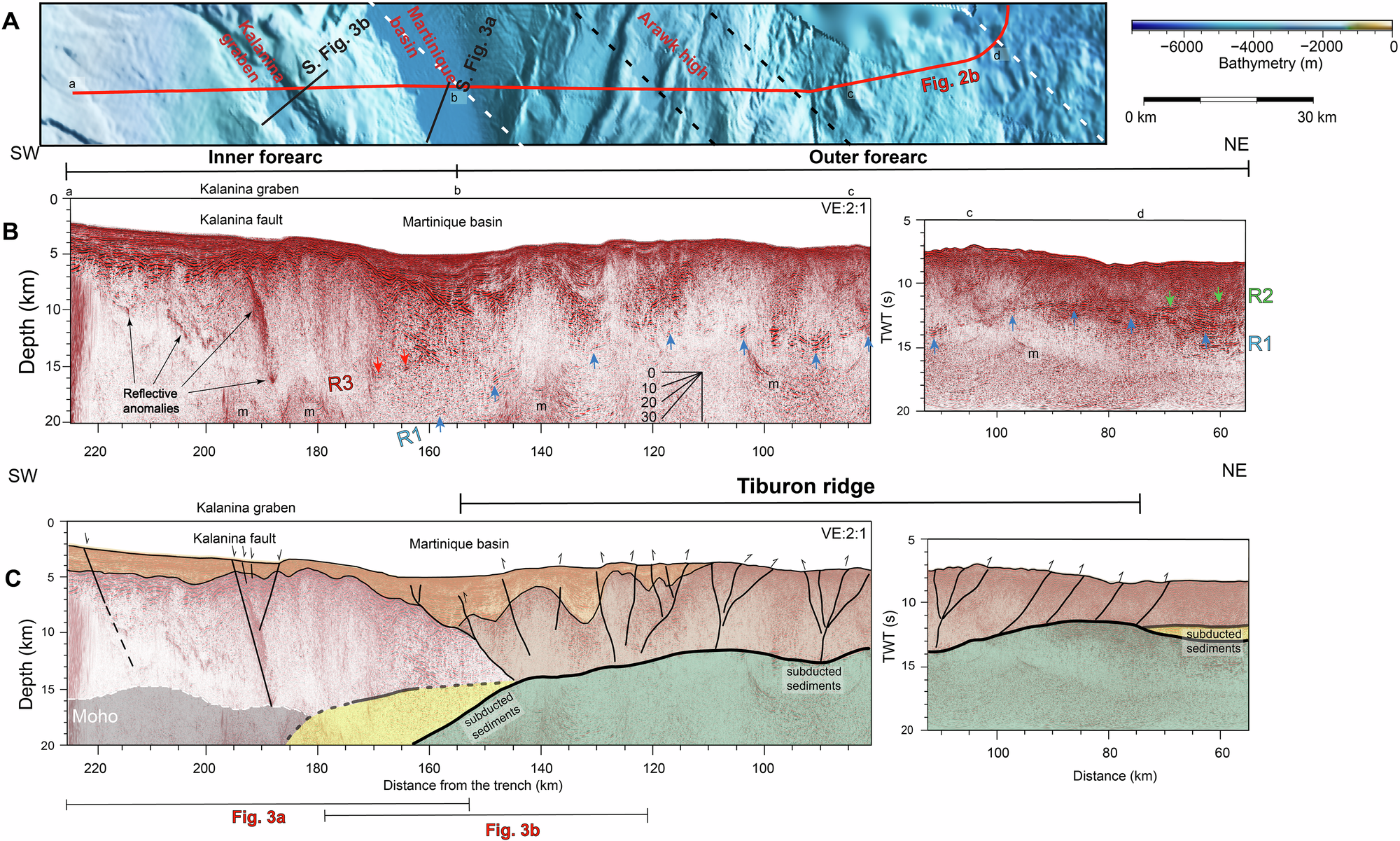

Fig. 2: Bathymetric and seismic structures along the MCS profile.
From: Fluids from deep subducted sediments control the seismic behavior of the Lesser Antilles megathrust
Bathymetric (a), time-migrated and depth-converted reflection image (b) with interpretation (c) of the MCS profile. While dashed lines indicate the extent of the underthrust Tiburon ridge. Black dashed lines indicate the Arawk high coincides with the peak of the inner relief. Blue arrows point to reflector R1, green R2, and red R3. Moho is modified from ref. 39. M denotes the multiple.
