Fig. 7: Daily average CO emission and ∇(u∙VCO) during special time periods from 2018 to 2022.

From: Space-based inversion reveals underestimated carbon monoxide emissions over Shanxi

Fig. 7: Daily average CO emission and ∇(u∙VCO) during special time periods from 2018 to 2022.

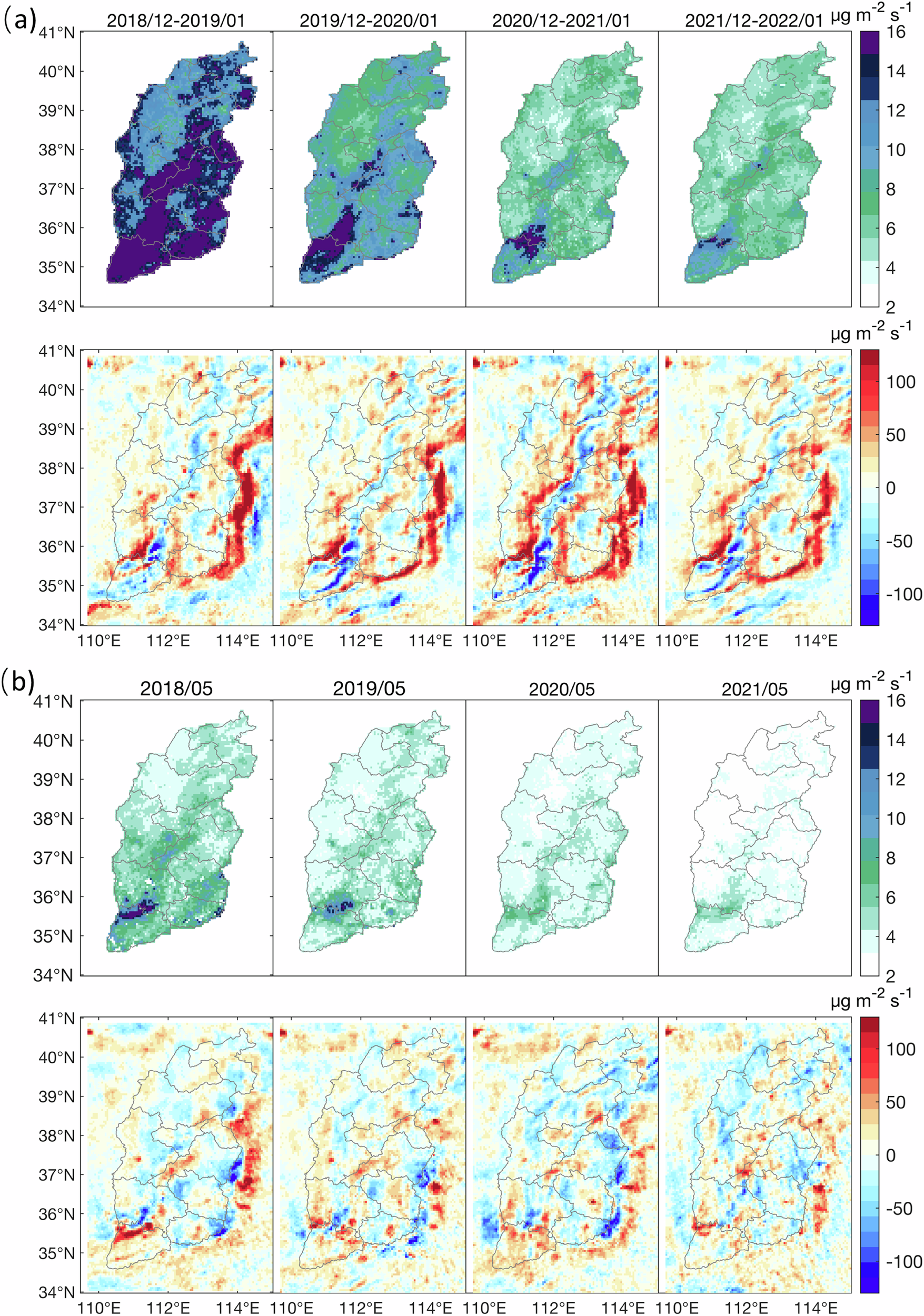

a With CO emission (top) and \({\nabla ({{{\bf{u}}}}\cdot {V}_{{CO}})}\) (bottom) from December to January. b With CO emission (top) and \({\nabla ({{{\bf{u}}}}\cdot {V}_{{CO}})}\) (bottom) in May. Red regions signify net sources due to transport and blue regions indicates the area for pollutant input.
