Fig. 3: Effects of warming on current, MKE and EKE.
From: Weakened circulation in the deep South China Sea triggered by prolonged warming

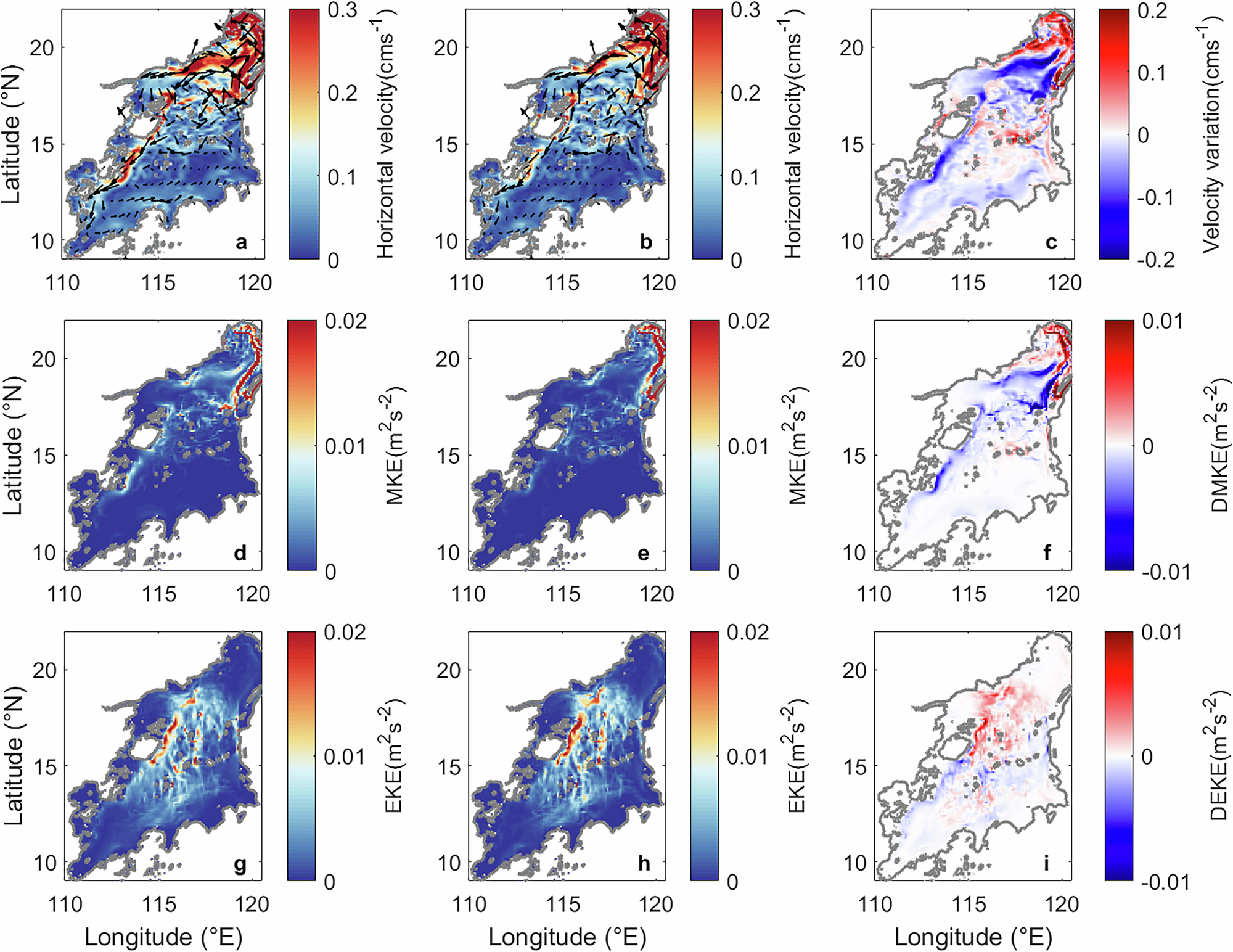

Vertically averaged horizontal current in the deep SCS in a EX1 (the cold experiment) and b EX2 (the warm experiment), the color indicates the current intensity, and the arrows indicate the direction; c the difference in the deep horizontal current between EX2 and EX1; d–f corresponding results for the MKE; g–i corresponding results for the EKE.
