Fig. 6: Evolution of circulation and density gradient in EX3 and EX4.
From: Weakened circulation in the deep South China Sea triggered by prolonged warming

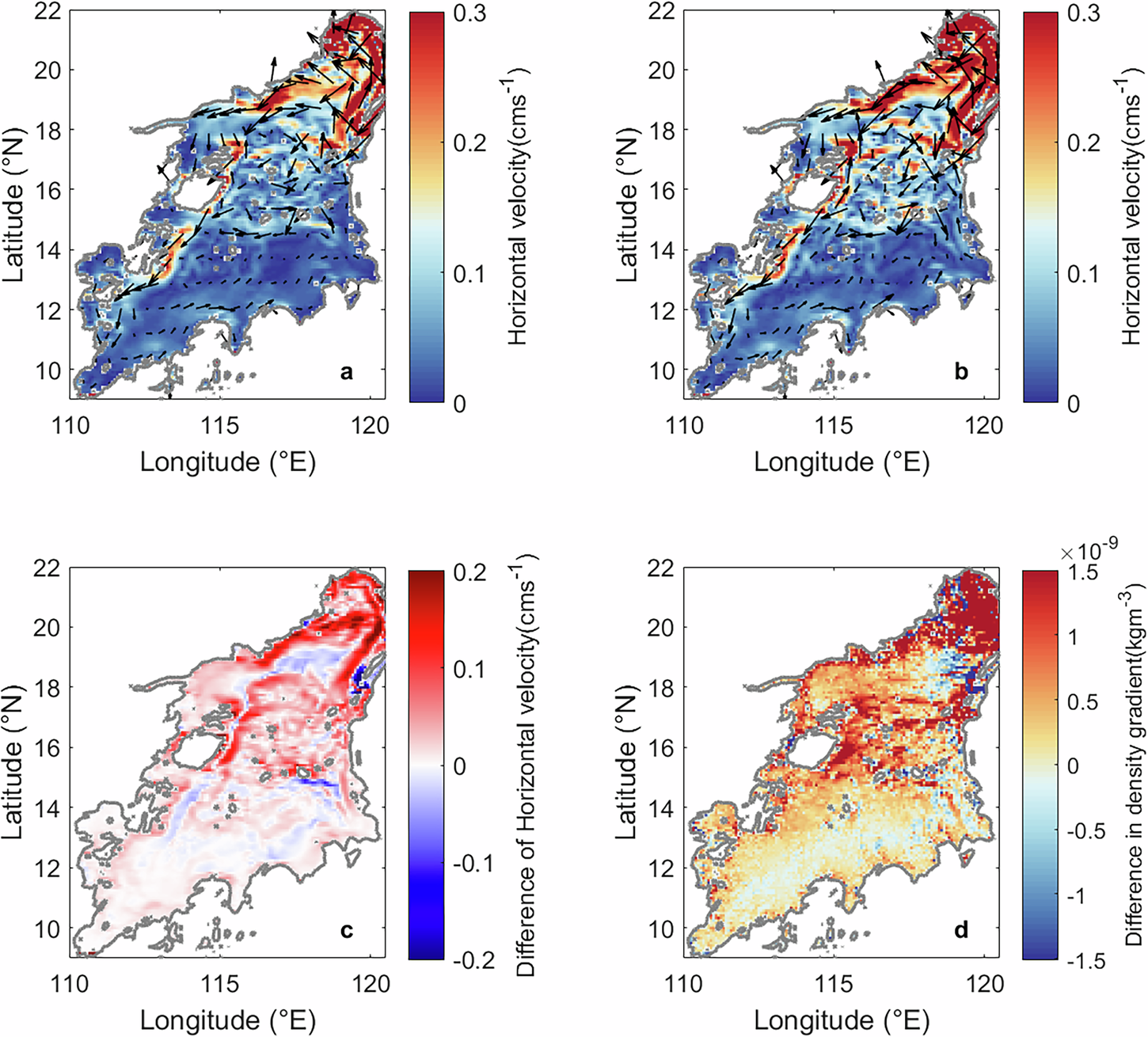

Vertically averaged horizontal current in the deep SCS in a EX3 and b EX4 (the color indicates the current intensity, and the arrows indicate the direction); differences in c deep horizontal current and d density gradient between EX4 and EX3.
