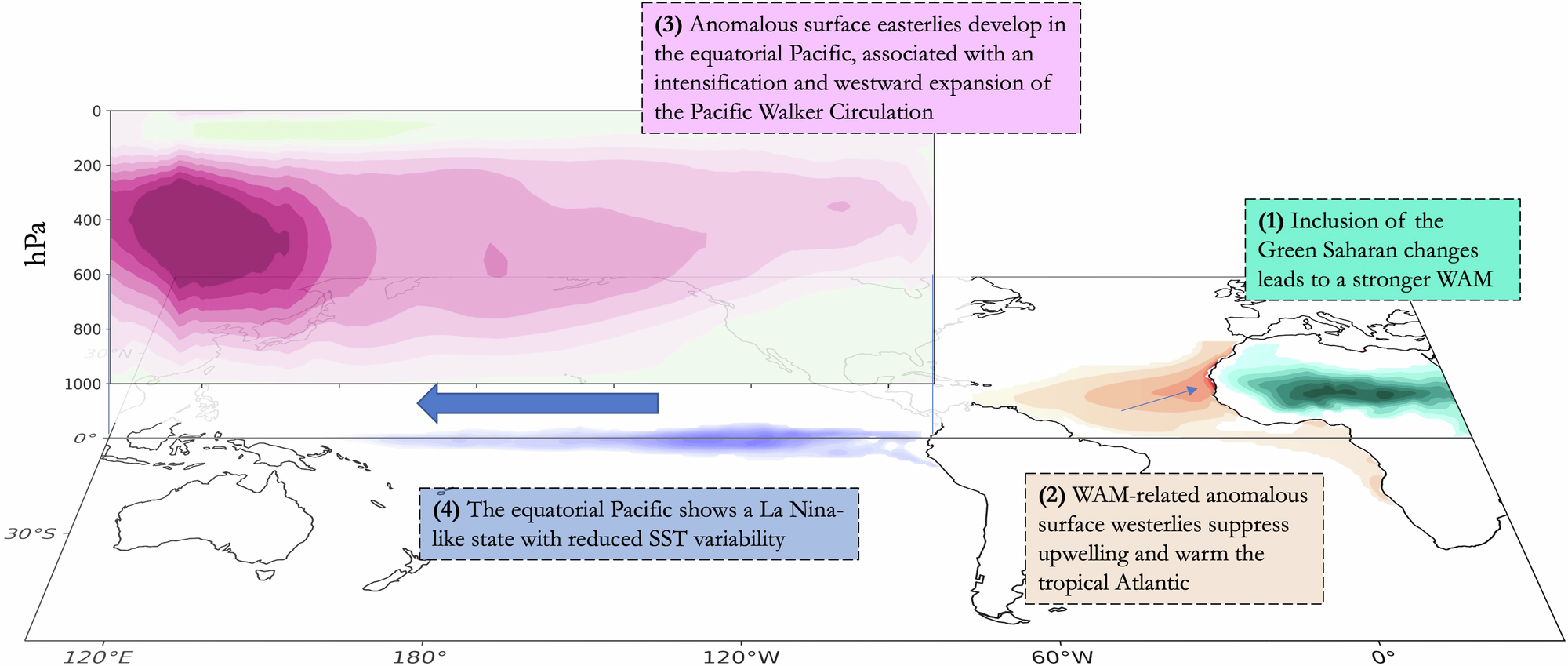

Fig. 5: Impact of the Green Saharan changes.

Colors are based on multi-model mean MH_GS anomalies relative to the MH_REF simulation for (1) mean annual precipitation (green), (2) SST (orange), (3) zonal mass streamfunction (pink), and (4) boreal winter SST variability (blue).
